STEPPER MOTOR HYBRID BIPOLAR 24V
316020003
ObsoleteSeeed Technology Co., Ltd
STEPPER MOTOR HYBRID BIPOLAR 24V
Description
General part information
316020003

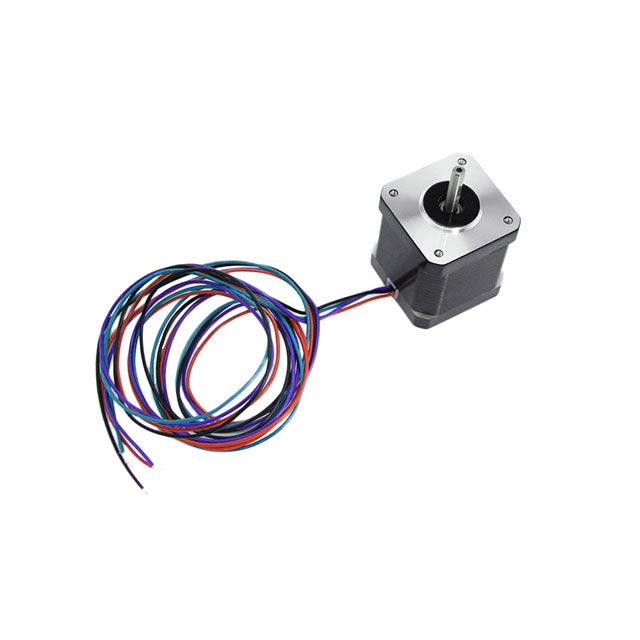

Bipolar Stepper Motor Hybrid Frame Size 17 200.0 Step 1.5 A 24VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | 316020003 |
|---|---|
| Coil Resistance | 1.6 Ohms |
| Coil Type | Bipolar |
| Current Rating | 1.5 A |
| Diameter - Shaft | 0.197 in |
| Features | Round Shaft |
| Length - Shaft and Bearing | 0.867 in |
| Mounting Hole Spacing | 1.22 in |
| NEMA Frame Size | 17 |
| Size / Dimension Length | 1.665 in |
| Size / Dimension Shape | Square |
| Size / Dimension Width | 1.665 in |
| Step Angle | 1.8 ° |
| Steps per Revolution | 200 steps |
| Termination Style | Wire Leads |
| Torque - Holding (mNm) | 539.37 mNm |
| Torque - Holding (oz-in) | 76.38 oz-in |
| Type | Hybrid |
| Voltage - Rated | 24 VAC |
| Weight | 0.827 lb |
