Q-0100Z0001024i

Active

Amphenol Custom Cable

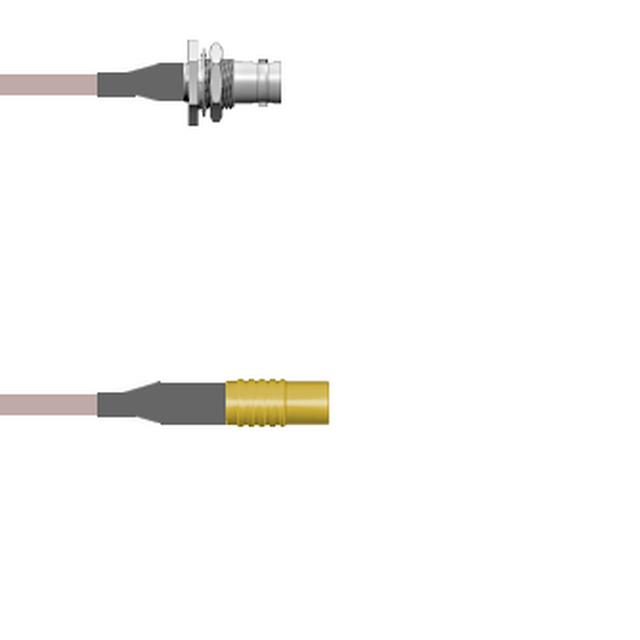

CBL ASSY BNC-MCX JACK-JACK 24"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0100Z0001024i

Active

Amphenol Custom Cable

CBL ASSY BNC-MCX JACK-JACK 24"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	Q-0100Z0001024i	Q-0100Z0 Series

1st Connector	BNC Jack	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount	Panel Mount
1st Contact Gender	Female	Female
2nd Connector	MCX Jack	MCX Jack
2nd Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
2nd Contact Gender	Female	Female
Cable Type	RG-178	RG-178
Color	Copper	Copper
Features	Shielded	Shielded
Frequency - Max [Max]	4 GHz	4 GHz
Length	24 "	3 - 118.1 in
Length	609.6 mm	1 - 1200 m
Length	-	3.3 - 9.8 ft
Length	-	9.843 "
Length	-	250 - 457.2 mm
Length	-	457.2 mm
Overall Impedance	50 Ohms	50 Ohms
Style	BNC to MCX	BNC to MCX

Q-0100Z0 Series

CBL ASSY BNC-MCX JACK-JACK 6'

Part	2nd Connector	Overall Impedance	2nd Contact Gender	1st Contact Gender	Features	Cable Type	2nd Connector Mounting Type	1st Connector Mounting Feature	1st Connector	Style	Length	Length	Length	Frequency - Max [Max]	Color	1st Connector Mounting Type	Length [x]	Length [x]
Amphenol Custom Cable Q-0100Z0001072i	MCX Jack	50 Ohms	Female	Female	Shielded	RG-178	Free Hanging (In-Line)	Bulkhead - Front Side Nut	BNC Jack	BNC to MCX	6 ft	72 in	1.8 m	4 GHz	Copper	Panel Mount
Amphenol Custom Cable Q-0100Z0001.25M	MCX Jack	50 Ohms	Female	Female	Shielded	RG-178	Free Hanging (In-Line)	Bulkhead - Front Side Nut	BNC Jack	BNC to MCX				4 GHz	Copper	Panel Mount	9.843 "	250 mm
Amphenol Custom Cable Q-0100Z00012.5M	MCX Jack	50 Ohms	Female	Female	Shielded	RG-178	Free Hanging (In-Line)	Bulkhead - Front Side Nut	BNC Jack	BNC to MCX	8.2 '	98.4 in	2.5 m	4 GHz	Copper	Panel Mount
Amphenol Custom Cable Q-0100Z0001009i	MCX Jack	50 Ohms	Female	Female	Shielded	RG-178	Free Hanging (In-Line)	Bulkhead - Front Side Nut	BNC Jack	BNC to MCX		9 "	228.6 mm	4 GHz	Copper	Panel Mount
Amphenol Custom Cable Q-0100Z00010.5M	MCX Jack	50 Ohms	Female	Female	Shielded	RG-178	Free Hanging (In-Line)	Bulkhead - Front Side Nut	BNC Jack	BNC to MCX		19.69 "	50 cm	4 GHz	Copper	Panel Mount
Amphenol Custom Cable Q-0100Z0001048i	MCX Jack	50 Ohms	Female	Female	Shielded	RG-178	Free Hanging (In-Line)	Bulkhead - Front Side Nut	BNC Jack	BNC to MCX	4 ft	48 in	1200 mm	4 GHz	Copper	Panel Mount
Amphenol Custom Cable Q-0100Z0001.75M	MCX Jack	50 Ohms	Female	Female	Shielded	RG-178	Free Hanging (In-Line)	Bulkhead - Front Side Nut	BNC Jack	BNC to MCX		29.53 "	750 mm	4 GHz	Copper	Panel Mount
Amphenol Custom Cable Q-0100Z0001084i	MCX Jack	50 Ohms	Female	Female	Shielded	RG-178	Free Hanging (In-Line)	Bulkhead - Front Side Nut	BNC Jack	BNC to MCX	7 ft	84 in	2.1 m	4 GHz	Copper	Panel Mount
Amphenol Custom Cable Q-0100Z0001012i	MCX Jack	50 Ohms	Female	Female	Shielded	RG-178	Free Hanging (In-Line)	Bulkhead - Front Side Nut	BNC Jack	BNC to MCX		12 "	304.8 mm	4 GHz	Copper	Panel Mount
Amphenol Custom Cable Q-0100Z0001108i	MCX Jack	50 Ohms	Female	Female	Shielded	RG-178	Free Hanging (In-Line)	Bulkhead - Front Side Nut	BNC Jack	BNC to MCX	9 ft	108 in	2.7 m	4 GHz	Copper	Panel Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 80.24
		25	$ 78.68
		50	$ 77.12
		100	$ 75.57
		250	$ 74.01

Description

General part information

Q-0100Z0 Series

Cable Assembly Coaxial BNC to MCX RG-178 24.00" (609.60mm)

Documents

Technical documentation and resources

No documents available
