2GL50-73
ActiveCarling Technologies
TOGGLE SWITCH, ON-ON, DPDT, NON ILLUMINATED, G SERIES, 15 A
Deep-Dive with AI
Search across all available documentation for this part.
2GL50-73
ActiveCarling Technologies
TOGGLE SWITCH, ON-ON, DPDT, NON ILLUMINATED, G SERIES, 15 A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2GL50-73 | 2GL50 Series |
|---|---|---|
| Actuator Length [x] | 17.45 mm | 14.28 - 17.45 mm |
| Actuator Type | Standard Round | Standard Round, Paddle |
| Bushing Thread | 15/32-32 | 15/32-32 |
| Circuit | DPDT | DPDT |
| Current Rating (Amps) | 15 A | 15 A |
| Electrical Life | 50000 Cycles | 50000 Cycles |
| Illumination | Non-Illuminated | Non-Illuminated |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | 0 °C | 0 °C |
| Panel Cutout Dimensions [diameter] | 12.7 mm | 12.7 mm |
| Switch Function | On-On | On-On |
| Termination Style | Solder Lug | Solder Lug |
| Voltage Rating - AC | 125 V | 125 V |
2GL50 Series
SWITCH TOGGLE DPDT 15A 125V
| Part | Circuit | Actuator Length [x] | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Actuator Type | Panel Cutout Dimensions [diameter] | Illumination | Electrical Life | Bushing Thread | Switch Function | Current Rating (Amps) | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Carling Technologies 2GL50-63 | DPDT | 14.28 mm | 0 °C | 85 °C | Solder Lug | Standard Round | 12.7 mm | Non-Illuminated | 50000 Cycles | 15/32-32 | On-On | 15 A | 125 V |
Carling Technologies 2GL50-NBL3 | DPDT | 17.45 mm | 0 °C | 85 °C | Solder Lug | Paddle | 12.7 mm | Non-Illuminated | 50000 Cycles | 15/32-32 | On-On | 15 A | 125 V |
Carling Technologies 2GL50-73 | DPDT | 17.45 mm | 0 °C | 85 °C | Solder Lug | Standard Round | 12.7 mm | Non-Illuminated | 50000 Cycles | 15/32-32 | On-On | 15 A | 125 V |
Carling Technologies 2GL50-78 | DPDT | 17.45 mm | 0 °C | 85 °C | Solder Lug | Standard Round | 12.7 mm | Non-Illuminated | 50000 Cycles | 15/32-32 | On-On | 15 A | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 13.33 | |
| 10 | $ 11.50 | |||
| 25 | $ 10.85 | |||
| 50 | $ 10.37 | |||
| 100 | $ 9.92 | |||
| 250 | $ 9.85 | |||
Description
General part information
2GL50 Series

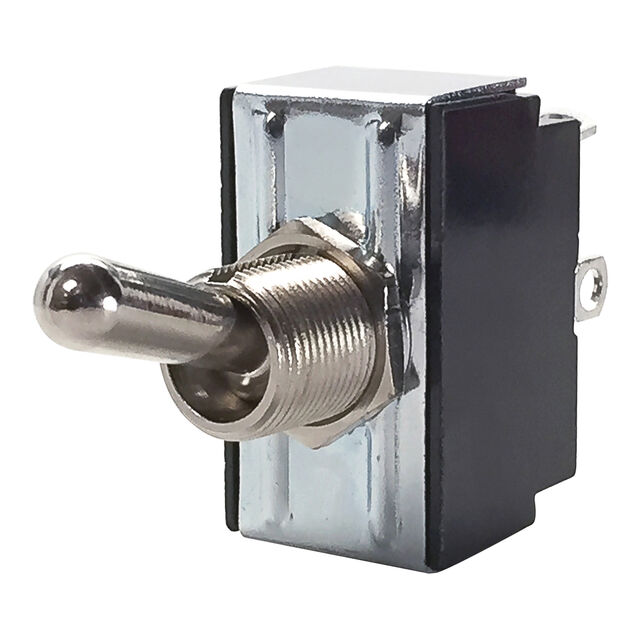

The 2GL50-73 is a double-pole double-throw (DPDT) Toggle Switch with solder lug terminal, a polycarbonate bat actuator and ON-NONE-ON function. The G series versatile switch has slow-make/slow-break contact mechanism. It features phenolic base and nickel-plated brass bushing.
