155230-5203-RB

Active

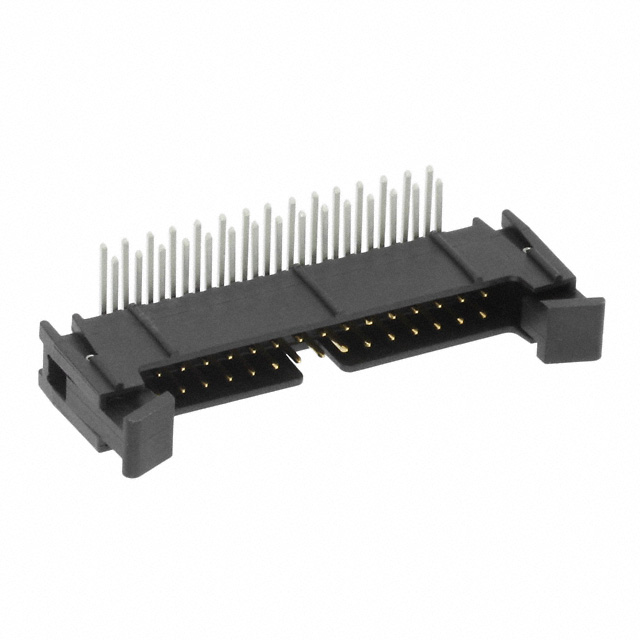

CONN HEADER R/A 30POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInterconnect Catalog Datasheet

155230-5203-RB

Active

CONN HEADER R/A 30POS 2MM

Deep-Dive with AI

DocumentsInterconnect Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	155230-5203-RB	155230 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Length - Mating	0.15 in	0.15 in
Contact Length - Mating	3.81 mm	3.81 mm
Contact Length - Post	3.94 mm	2.84 - 3.94 mm
Contact Length - Post	0.155 "	0.112 - 0.155 "
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	1.25 A	1.25 A
Fastening Type	Latch Lock/Eject Hooks	Latch Lock/Eject Hooks
Features	Keying Slot	Keying Slot, Pick and Place
Insulation Color	Black	Black
Insulation Height	6.28 mm	6.28 - 10.8 mm
Insulation Height	0.247 in	0.247 - 0.425 in
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle, Surface Mount
Number of Positions	30	30
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Row Spacing - Mating	0.079 in	0.079 in
Row Spacing - Mating	2 mm	2 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder

155230 Series

CONN HEADER R/A 30POS 2MM

Part	Row Spacing - Mating	Row Spacing - Mating	Termination	Mounting Type	Contact Type	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Style	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Material Flammability Rating	Contact Finish - Post	Fastening Type	Pitch - Mating [x]	Pitch - Mating [x]	Shrouding	Contact Material	Number of Positions	Contact Shape	Contact Length - Mating	Contact Length - Mating	Features	Contact Finish - Mating	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Number of Positions Loaded
3M 155230-5203-RB	0.079 in	2 mm	Solder	Through Hole, Right Angle	Male Pin	3.94 mm	0.155 "	6.28 mm	0.247 in	Board to Cable/Wire	105 ░C	-55 °C	2	200 µin	5.08 µm	1.25 A	UL94 V-0	Tin	Latch Lock/Eject Hooks	0.079 in	2 mm	Shrouded - 4 Wall	Copper Alloy	30	Square	0.15 in	3.81 mm	Keying Slot	Gold	Black	30 Áin	0.76 Ám	Header	All
3M 155230-5202-RB	0.079 in	2 mm	Solder	Through Hole, Right Angle	Male Pin	2.84 mm	0.112 in	6.28 mm	0.247 in	Board to Cable/Wire	105 ░C	-55 °C	2	200 µin	5.08 µm	1.25 A	UL94 V-0	Tin	Latch Lock/Eject Hooks	0.079 in	2 mm	Shrouded - 4 Wall	Copper Alloy	30	Square	0.15 in	3.81 mm	Keying Slot	Gold	Black	30 Áin	0.76 Ám	Header	All
3M 155230-2200-RB-WF	0.079 in	2 mm	Solder	Surface Mount	Male Pin			10.8 mm	0.425 in	Board to Cable/Wire	105 ░C	-55 °C	2	200 µin	5.08 µm	1.25 A	UL94 V-0	Tin	Latch Lock/Eject Hooks	0.079 in	2 mm	Shrouded - 4 Wall	Copper Alloy	30	Square	0.15 in	3.81 mm	Keying Slot, Pick and Place	Gold	Black	30 Áin	0.76 Ám	Header	All

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	980	$ 7.74

Description

General part information

155230 Series

Connector Header Through Hole, Right Angle 30 position 0.079" (2.00mm)

Documents

Technical documentation and resources

Interconnect Catalog

Datasheet
