BC-ATS-082508

Active

Boxco

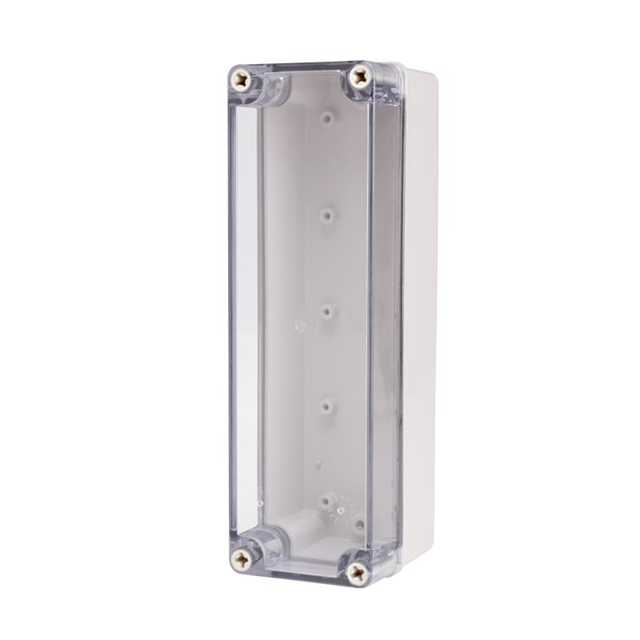

BOX ABS CLEAR 9.84"L X 3.15"W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BC-ATS-082508

Active

Boxco

BOX ABS CLEAR 9.84"L X 3.15"W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BC-ATS-082508	BC-ATS Series

Area (L x W)	-	13.6 - 165 in˛
Area (L x W)	-	82.5 - 1064 cm˛
Area (L x W)	-	532 cm˛
Color	Light Gray, Clear Cover	Light Gray, Clear Cover
Container Type	Box	Box
Design	Lift-Off Screw Cover	Lift-Off Screw Cover
Features	Sealing Gasket, Wall Mount	Sealing Gasket, Wall Mount
Height [z]	85 mm	70 - 180 mm
Height [z]	3.346 in	2.756 - 7.087 in
Material	ABS Body, Plastic, Polycarbonate Cover	ABS Body, Plastic, Polycarbonate Cover
Material Flammability Rating	UL94 HB	UL94 HB
Ratings	NEMA 6, IP66, UL 508A, NEMA 4X, IP67	NEMA 6, IP66, UL 508A, NEMA 4X, IP67
Size / Dimension [x]	9.843 "	4.331 - 14.961 in
Size / Dimension [x]	250 mm	110 - 380 mm
Size / Dimension [y]	3.15 in	3.15 - 11.024 "
Size / Dimension [y]	80 mm	80 - 280 mm

BC-ATS Series

BOX ABS CLEAR 14.96"L X 11.02"W

Part	Container Type	Color	Area (L x W)	Area (L x W)	Material	Ratings	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Material Flammability Rating	Design	Height [z]	Height [z]	Features	Area (L x W)
Boxco BC-ATS-283813	Box	Clear Cover, Light Gray	165 in˛	1064 cm˛	ABS Body, Plastic, Polycarbonate Cover	IP66, IP67, NEMA 4X, NEMA 6, UL 508A	380 mm	14.961 in	11.024 "	280 mm	UL94 HB	Lift-Off Screw Cover	5.118 in	130 mm	Sealing Gasket, Wall Mount
Boxco BC-ATS-081107	Box	Clear Cover, Light Gray	13.6 in˛	88 cm²	ABS Body, Plastic, Polycarbonate Cover	IP66, IP67, NEMA 4X, NEMA 6, UL 508A	110 mm	4.331 in	3.15 in	80 mm	UL94 HB	Lift-Off Screw Cover	2.756 "	70 mm	Sealing Gasket, Wall Mount
Boxco BC-ATS-081108	Box	Clear Cover, Light Gray	13.6 in˛	88 cm²	ABS Body, Plastic, Polycarbonate Cover	IP66, IP67, NEMA 4X, NEMA 6, UL 508A	110 mm	4.331 in	3.15 in	80 mm	UL94 HB	Lift-Off Screw Cover	3.346 in	85 mm	Sealing Gasket, Wall Mount
Boxco BC-ATS-283818	Box	Clear Cover, Light Gray	165 in˛	1064 cm˛	ABS Body, Plastic, Polycarbonate Cover	IP66, IP67, NEMA 4X, NEMA 6, UL 508A	380 mm	14.961 in	11.024 "	280 mm	UL94 HB	Lift-Off Screw Cover	7.087 in	180 mm	Sealing Gasket, Wall Mount
Boxco BC-ATS-193813	Box	Clear Cover, Light Gray	112 in˛	722 cm²	ABS Body, Plastic, Polycarbonate Cover	IP66, IP67, NEMA 4X, NEMA 6, UL 508A	380 mm	14.961 in	7.48 in	190 mm	UL94 HB	Lift-Off Screw Cover	5.118 in	130 mm	Sealing Gasket, Wall Mount
Boxco BC-ATS-082508	Box	Clear Cover, Light Gray			ABS Body, Plastic, Polycarbonate Cover	IP66, IP67, NEMA 4X, NEMA 6, UL 508A	250 mm	9.843 "	3.15 in	80 mm	UL94 HB	Lift-Off Screw Cover	3.346 in	85 mm	Sealing Gasket, Wall Mount
Boxco BC-ATS-192818	Box	Clear Cover, Light Gray		82.5 in˛	ABS Body, Plastic, Polycarbonate Cover	IP66, IP67, NEMA 4X, NEMA 6, UL 508A	280 mm	11.024 in	7.48 in	190 mm	UL94 HB	Lift-Off Screw Cover	7.087 in	180 mm	Sealing Gasket, Wall Mount	532 cm˛

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 18.90

Description

General part information

BC-ATS Series

Box Plastic, ABS Body, Polycarbonate Cover Light Gray, Clear Cover Lift-Off Screw Cover 9.843" L x 3.150" W (250.00mm x 80.00mm) X 3.346" (85.00mm)
