0034.1510.PT

Active

SCHURTER Inc.

35A GLASS TUBE FUSE 250MA 250V PLUGIN,D5.4XL22.5MM DISPOSABLE FUSES ROHS

Search across all available documentation for this part.

Active

SCHURTER Inc.

35A GLASS TUBE FUSE 250MA 250V PLUGIN,D5.4XL22.5MM DISPOSABLE FUSES ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	0034.1510.PT

Breaking Capacity @ Rated Voltage	35 A
Current Rating (Amps)	0.25 A
Melting I²t	0.0159
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case [x]	5 mm
Package / Case [y]	20 mm
Response Time	Fast Blow
Size / Dimension [diameter]	5.4 mm
Size / Dimension [diameter]	0.213 in
Size / Dimension [x]	0.886 "
Size / Dimension [x]	22.5 mm
Voltage Rating - AC	250 V

35A GLASS TUBE FUSE 250MA 250V PLUGIN,D5.4XL22.5MM DISPOSABLE FUSES ROHS

Part	Package / Case [x]	Package / Case [y]	Mounting Type	Current Rating (Amps)	Breaking Capacity @ Rated Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage Rating - AC	Melting I²t	Response Time
SCHURTER Inc. 0034.1510.PT	5 mm	20 mm	Through Hole	0.25 A	35 A	-55 °C	125 °C	0.886 "	22.5 mm	5.4 mm	0.213 in	250 V	0.0159	Fast Blow

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

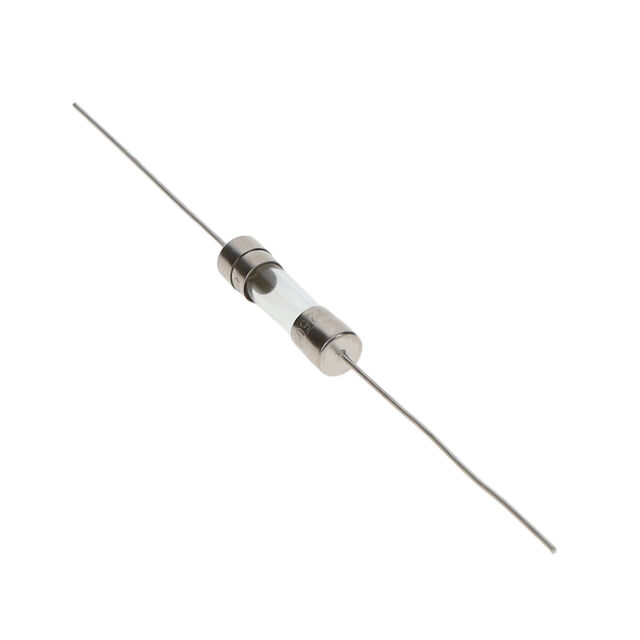

250 mA 250 V AC DC Fuse Cartridge, Glass Through Hole 5mm x 20mm (Axial)
