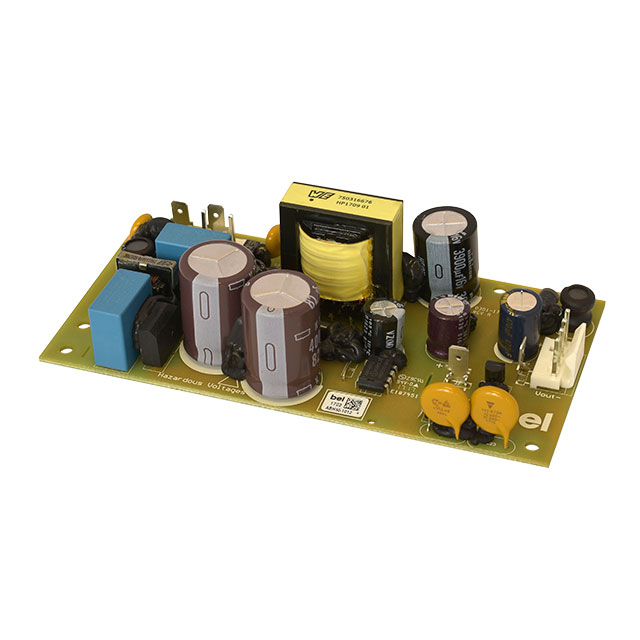

ABH50-1012

Active

Bel Power Solutions

AC/DC CONVERTER 12V 50W

Search across all available documentation for this part.

Active

Bel Power Solutions

AC/DC CONVERTER 12V 50W

Technical Specifications

Parameters and characteristics for this part

Specification	ABH50-1012

Applications	ITE (Commercial)
Current - Output 1	4.2 A
Efficiency	90 %
Features	Adjustable Output, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-5 °C
Power (Watts)	50 W
Size / Dimension [x]	5 in
Size / Dimension [x]	127 mm
Size / Dimension [y]	2.5 in
Size / Dimension [y]	63.5 mm
Size / Dimension [z]	1.34 in
Size / Dimension [z]	34 mm
Type	Open Frame
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

AC/DC CONVERTER 12V 50W

Part	Voltage - Isolation	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Power (Watts)	Number of Outputs	Efficiency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Voltage - Output 1	Features	Current - Output 1	Type
Bel Power Solutions ABH50-1012	3000 V	Chassis Mount	50 °C	-5 °C	ITE (Commercial)	50 W	1	90 %	5 in	2.5 in	127 mm	63.5 mm	1.34 in	34 mm	12 V	Adjustable Output, Universal Input	4.2 A	Open Frame

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 14.90

General part information

Open Frame AC DC Converters 1 Output 12V 85 ~ 264 VAC Input

Technical documentation and resources

No documents available
