T1SB01RV
ActivePulse Electronics
MDL 10G 1 PORT 4PAIR POE 90W
T1SB01RV
ActivePulse Electronics
MDL 10G 1 PORT 4PAIR POE 90W
Description
General part information
T1SB01RV

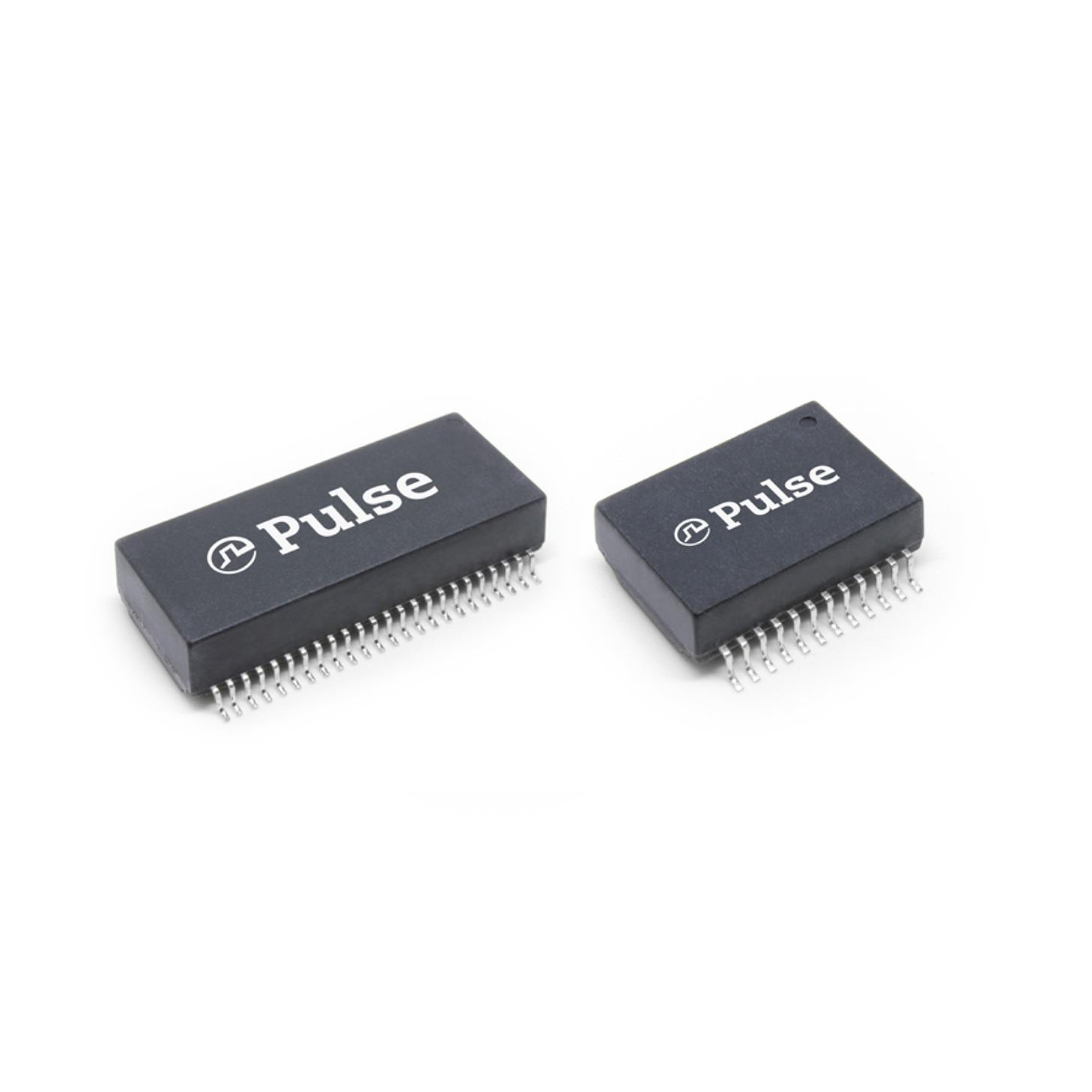

120µH LAN 10 Base-T Pulse Transformer 1:1CT Transmitter, 1:1CT Receiver Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | T1SB01RV |
|---|---|
| Height - Seated (Max) | 0.236 in |
| Inductance | 120 µH |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Size / Dimension Length | 0.691 in |
| Size / Dimension Width | 0.48 in |
| Transformer Type | LAN 10 Base-T |
| Turns Ratio - Primary (Receiver) | 1 CT |
| Turns Ratio - Primary (Transmitter) | 1 CT |
| Turns Ratio - Secondary (Receiver) | 1 |
| Turns Ratio - Secondary (Transmitter) | 1 CT |
| Turns Ratio Mode | Receiver, Transmitter |
