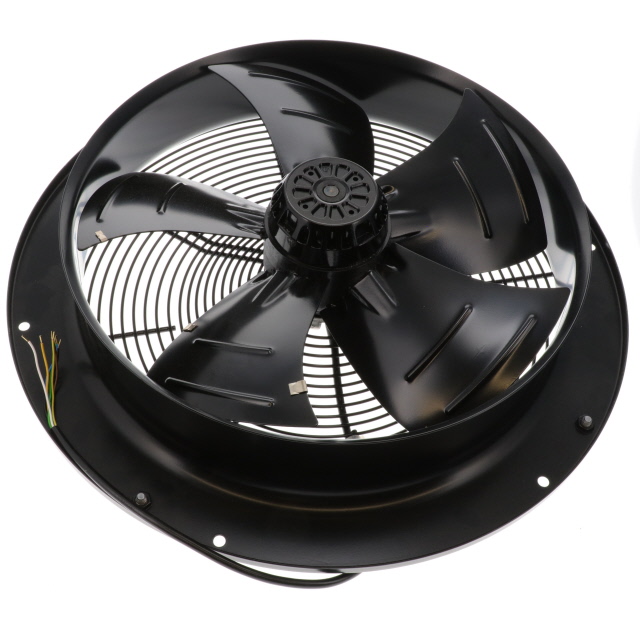

W4D400-CP12-30
Activeebm-papst Inc.
FAN AXIAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
W4D400-CP12-30
Activeebm-papst Inc.
FAN AXIAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | W4D400-CP12-30 |
|---|---|
| Air Flow | 42.8 mł/min |
| Air Flow | 1528.5 CFM |
| Bearing Type | Ball |
| Current Rating (Amps) [Max] | 0.68 A |
| Current Rating (Amps) [Min] | 0.39 A |
| Fan Type | Tubeaxial, 3 Phase |
| Features | Dual Voltage |
| Ingress Protection | IP44 |
| Material - Blade | Steel |
| Material - Frame | Steel |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | -25 °C |
| Operating Temperature [Min] | -25 °C |
| Power (Watts) | 185 W |
| RPM | 1690 RPM |
| Size / Dimension [diameter] | 528 mm |
| Termination | 7 Wire Leads with Splice Terminals |
| Voltage - Rated | 230 VAC, 400 VAC |
| Width [y] | 131 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 431.55 | |
| 10 | $ 398.12 | |||
| 25 | $ 392.04 | |||
Description
General part information
W4D400-CP12-30
Fan Tubeaxial, 3 Phase 230/400VAC Round - 528mm Dia Ball 1528.5 CFM (42.80m³/min) 7 Wire Leads with Splice Terminals
