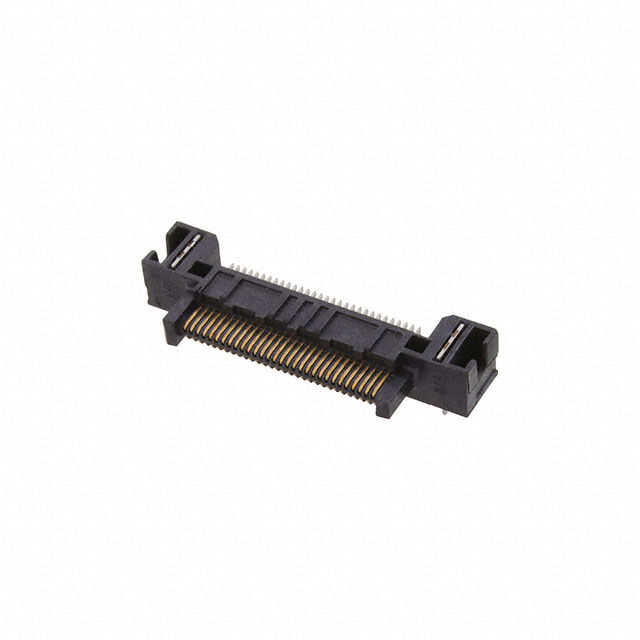

FT5-30-01-L-RA-K-TR

Active

Samtec Inc.

MEZZANINE CONNECTOR, HEADER, 0.5 MM, 2 ROWS, 60 CONTACTS, SURFACE MOUNT RIGHT ANGLE

Search across all available documentation for this part.

Active

Samtec Inc.

MEZZANINE CONNECTOR, HEADER, 0.5 MM, 2 ROWS, 60 CONTACTS, SURFACE MOUNT RIGHT ANGLE

Technical Specifications

Parameters and characteristics for this part

Specification	FT5-30-01-L-RA-K-TR

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Pick and Place, Board Guide
Height Above Board [z]	4.17 mm
Height Above Board [z]	0.164 in
Mounting Type	Surface Mount, Right Angle
Number of Positions	60
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Number of Rows	Height Above Board [z]	Height Above Board [z]	Number of Positions	Connector Type	Mounting Type	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Features
Samtec Inc. FT5-30-01-L-RA-K-TR	2	4.17 mm	0.164 in	60	Header Outer Shroud Contacts	Surface Mount Right Angle	0.5 mm	0.02 in	10 Áin	0.25 Ám	Gold	Board Guide Pick and Place

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

60 Position Connector Header, Outer Shroud Contacts Surface Mount, Right Angle Gold
