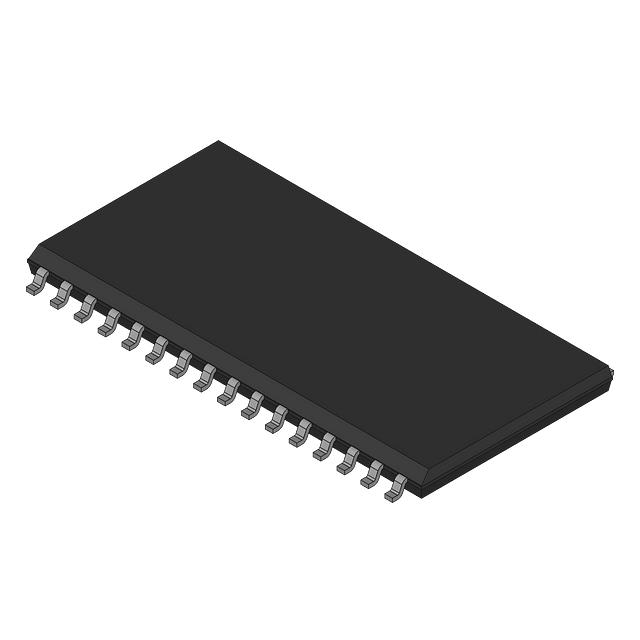

X28C010RMB-25

Active

Intersil

IC EEPROM 1MBIT PARALLEL 32CSOP

Search across all available documentation for this part.

Active

Intersil

IC EEPROM 1MBIT PARALLEL 32CSOP

Technical Specifications

Parameters and characteristics commom to parts in this series

IC EEPROM 1MBIT PARALLEL 32CSOP

Part	Memory Format	Memory Organization	Supplier Device Package	Package / Case	Package / Case	Package / Case	Access Time	Voltage - Supply [Min]	Voltage - Supply [Max]	Memory Type	Mounting Type	Memory Interface	Technology	Operating Temperature [Min]	Operating Temperature [Max]	Memory Size	Write Cycle Time - Word, Page	Supplier Device Package [y]	Supplier Device Package [x]
Intersil X28C010RMB-25	EEPROM	128K x 8	32-CSOP	0.44 in	32-CSOIC	11.18 mm	250 ns	4.5 V	5.5 V	Non-Volatile	Surface Mount	Parallel	EEPROM	-55 °C	125 °C	1 Mbit	10 ms
Intersil X28C010DI-12	EEPROM	128K x 8	32-CDIP	0.6 in	32-CDIP	15.24 mm	120 ns	4.5 V	5.5 V	Non-Volatile	Through Hole	Parallel	EEPROM	-40 °C	85 °C	1 Mbit	10 ms
Intersil X28C010D-15	EEPROM	128K x 8	32-CDIP	0.6 in	32-CDIP	15.24 mm	150 ns	4.5 V	5.5 V	Non-Volatile	Through Hole	Parallel	EEPROM	0 °C	70 °C	1 Mbit	10 ms
Intersil X28C010FM-12	EEPROM	128K x 8	32-PLCC		32-LCC (J-Lead)		120 ns	4.5 V	5.5 V	Non-Volatile	Surface Mount	Parallel	EEPROM	-55 °C	125 °C	1 Mbit	10 ms	11.43	13.97

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 909.94

General part information

EEPROM Memory IC 1Mbit Parallel 250 ns 32-CSOP

Technical documentation and resources

No documents available
