VPS.00.250.CTLE31

Active

LEMO

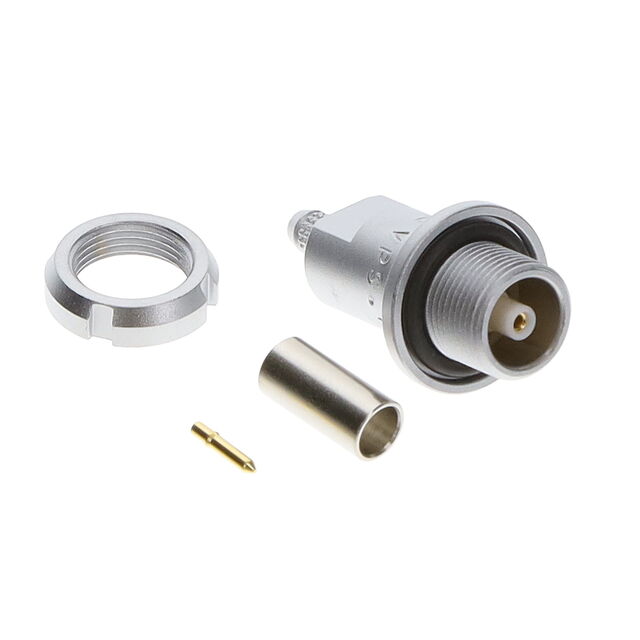

CONN NIMCAMAC RCPT STR 50 OHM

Search across all available documentation for this part.

Active

LEMO

CONN NIMCAMAC RCPT STR 50 OHM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	VPS.00.250.CTLE31	VPS.00.250 Series

	-	-
Body Finish	Chrome	Chrome
Body Material	Brass	Brass
Cable Group	316, 188A, RG-174	316, 188A, RG-174
Center Contact Material	Bronze	Bronze
Center Contact Plating	Gold	Gold
Connector Style	NIM-CAMAC CD/N 549	NIM-CAMAC CD/N 549
Connector Type	Receptacle, Female Socket	Receptacle, Female Socket
Contact Termination	Solder	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull	Push-Pull
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher	1 Nut, 1 Connector, 1 Lockwasher
Ingress Protection	IP50	IP50
Mating Cycles	5000	5000
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Number of Ports	1	1
Operating Temperature [Max]	260 ░C	260 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Shield Termination	Crimp	Crimp
Voltage Rating	700 VDC	700 VDC

CONN NIMCAMAC RCPT STR 50 OHM

Part	Shield Termination	Contact Termination	Fastening Type	Includes	Dielectric Material	Housing Color	Number of Ports	Mounting Feature	Connector Type	Voltage Rating	Connector Style	Ingress Protection	Body Finish	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles	Impedance	Center Contact Material	Cable Group	Body Material
LEMO VPS.00.250.CTLE31	Crimp	Solder	Push-Pull	1 Connector, 1 Lockwasher, 1 Nut	Polytetrafluoroethylene (PTFE)	Silver	1	Bulkhead - Rear Side Nut	Female Socket, Receptacle	700 VDC	NIM-CAMAC CD/N 549	IP50	Chrome	Gold	-55 °C	260 ░C	5000	50 Ohms	Bronze	188A, 316, RG-174	Brass
LEMO VPS.00.250.CTLE31Y

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

NIM-CAMAC CD/N 549 Connector Receptacle, Female Socket 50 Ohms Panel Mount Solder
