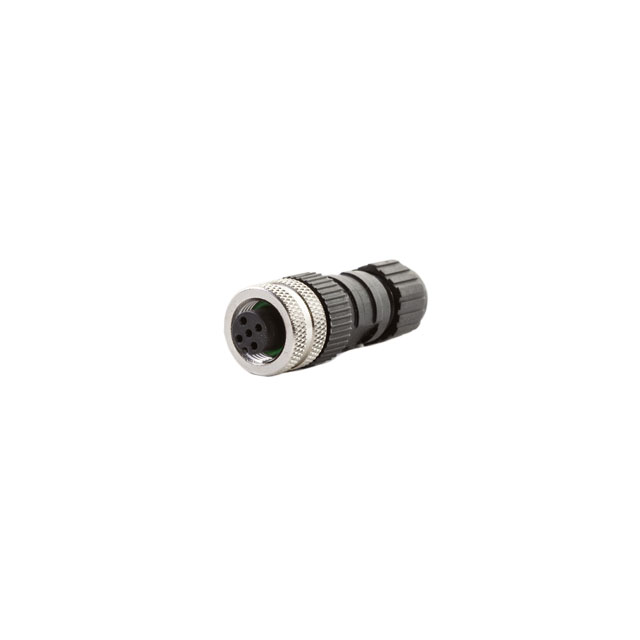

IPM12-A5F-SCFT
ActiveSure-Seal
CONN PLUG FMALE 5POS GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
IPM12-A5F-SCFT
ActiveSure-Seal
CONN PLUG FMALE 5POS GOLD SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IPM12-A5F-SCFT |
|---|---|
| Applications | Industrial |
| Backshell Material, Plating | Nylon, Polyamide (PA), Glass Filled |
| Cable Opening [custom] | 0.217 in, 0.157 in |
| Cable Opening [custom] | 5.5 mm, 4 mm |
| Color | Black, Silver |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Brass |
| Current Rating (Amps) | 4 A |
| Features | Coupling Nut, Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA), Nylon, Thermoplastic Polyurethane (TPU) |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -25 °C |
| Orientation | A |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Brass |
| Shell Size - Insert | M12-5 |
| Shielding | Unshielded |
| Voltage Rating | 60 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 10.26 | |
| 10 | $ 9.31 | |||
| 100 | $ 8.34 | |||
| 1000 | $ 7.15 | |||
| 10000 | $ 6.78 | |||
Description
General part information
IPM12-A5F-SCFT
5 Position Circular Connector Plug, Female Sockets Solder Cup
