2823353

Active

Phoenix Contact

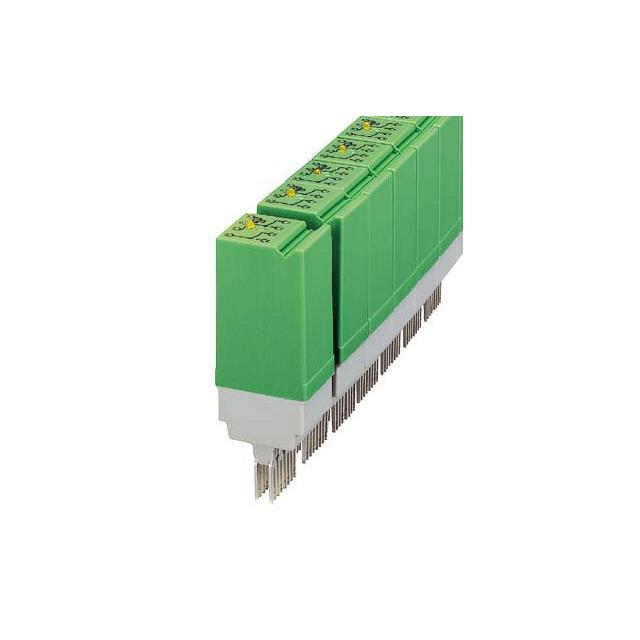

RELAY GEN PURPOSE DPDT 3A 48V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE DPDT 3A 48V

Technical Specifications

Parameters and characteristics commom to parts in this series

RELAY GEN PURPOSE DPDT 3A 48V

Part	Operate Time	Termination Style	Switching Voltage	Release Time	Coil Type	Coil Current	Coil Voltage	Contact Form	Mounting Type	Approval Agency	Features	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Coil Resistance	Relay Type	Contact Rating (Current)
Phoenix Contact 2823353	9 ms	Plug In	250 VAC, 250 VDC	10 ms	Non Latching	9 mA	48 VAC/DC	DPDT (2 Form C)	Socketable	GOST	Lighted Indicator, Varistor	Silver Nickel (AgNi)	50 °C	-20 C	5.3 kOhms	General Purpose	3 A
Phoenix Contact 2823308	9 ms	Plug In	250 VAC, 250 VDC	10 ms	Non Latching	17 mA	24 VAC	DPDT (2 Form C)	Socketable	GOST		Silver Nickel (AgNi)	50 °C	-20 C	1.41 kOhms	General Purpose	3 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 169.14

General part information

General Purpose Relay DPDT (2 Form C) 48VAC/DC Coil Socketable

Technical documentation and resources
