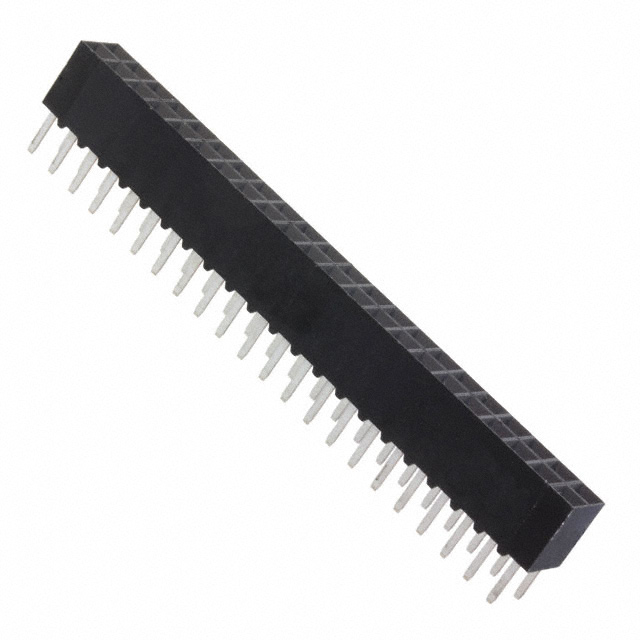

2-535542-2

Active

TE Connectivity Raychem Cable Protection

44 MODIV VRT DR CE 100/130 ROHS COMPLIANT: NO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2-535542-2

Active

TE Connectivity Raychem Cable Protection

44 MODIV VRT DR CE 100/130 ROHS COMPLIANT: NO

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2-535542-2

Connector Type	Receptacle, Bottom or Top Entry
Contact Finish - Mating	Gold
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	150 Áin
Contact Finish Thickness - Post	3.81 Ám
Contact Length - Post	0.13 in
Contact Length - Post	3.3 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	6.73 mm
Insulation Height	0.265 in
Insulation Material	Polyester, Glass Filled
Mounting Type	Through Hole
Number of Positions	44
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Style	Board to Board, Cable
Termination	Solder

Modu Connector System Series

Headers & Wire Housings STANDARD PRESSURE 32-27 AWG gold

...

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Number of Positions Loaded	Contact Finish - Post	Connector Type	Insulation Color	Contact Shape	Number of Rows	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Insulation Material	Number of Positions	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Material	Material Flammability Rating	Contact Type	Mounting Type	Style	Contact Length - Post [x]	Contact Length - Post [x]	Fastening Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Row Spacing [x]	Row Spacing	Pitch [x]	Pitch [x]	Contact Termination	Note	Color	Contact Finish - Mating	Contact Length - Post	Contact Length - Post
TE Connectivity Raychem Cable Protection 6-146762-2	150 Áin	3.81 Ám	0.1 in	2.54 mm	8.13 mm	0.32 in	All	Tin	Receptacle	Black	Square	2	2 A	125 °C	-65 ░C	Solder	Polyester Glass Filled	14	2.54 mm	0.1 in	Phosphor Bronze	UL94 V-0	Female Socket	Through Hole	Board to Board Cable	3.18 mm	0.125 in	Push-Pull	150 Áin	3.81 Ám
TE Connectivity Raychem Cable Protection 87631-5									Receptacle			2		105 ░C	-65 ░C		Thermoplastic	10					Female Socket	Free Hanging (In-Line)				Detent Lock			0.1 in	2.54 mm	2.54 mm	0.1 in	Crimp	Contacts Not Included	Black
TE Connectivity Raychem Cable Protection 1-534998-3	30 Áin	0.76 Ám	0.1 in	2.54 mm	6.73 mm	0.265 in	All	Tin-Lead	Receptacle	Black	Square	2	2 A	125 °C	-65 ░C	Solder		26	2.54 mm	0.1 in	Phosphor Bronze		Female Socket	Through Hole	Board to Board Cable	3.18 mm	0.125 in	Push-Pull	150 Áin	3.81 Ám								Gold
TE Connectivity Raychem Cable Protection 6-534206-7	30 Áin	0.76 Ám	0.1 in	2.54 mm	8.13 mm	0.32 in	All	Tin	Receptacle	Black	Square	2	2 A	125 °C	-65 ░C	Solder	Polyester Glass Filled	34	2.54 mm	0.1 in	Phosphor Bronze	UL94 V-0	Female Socket	Through Hole	Board to Board Cable			Push-Pull	150 Áin	3.81 Ám								Gold	2.92 mm	0.115 in
TE Connectivity Raychem Cable Protection 5-146138-6	10 çin	0.25 çm	0.1 in	2.54 mm	6.73 mm	0.265 in	All	Tin	Receptacle	Black	Square	1	2 A	125 °C	-65 ░C	Solder	Polyester Glass Filled	8			Phosphor Bronze	UL94 V-0	Female Socket	Through Hole	Board to Board Cable	3.18 mm	0.125 in	Push-Pull	150 Áin	3.81 Ám								Gold
TE Connectivity Raychem Cable Protection 5-146138-8	10 çin	0.25 çm	0.1 in	2.54 mm	6.73 mm	0.265 in	All	Tin	Receptacle	Black	Square	1	2 A	125 °C	-65 ░C	Solder	Polyester Glass Filled	10			Phosphor Bronze	UL94 V-0	Female Socket	Through Hole	Board to Board Cable	3.18 mm	0.125 in	Push-Pull	150 Áin	3.81 Ám								Gold
TE Connectivity Raychem Cable Protection 6-534236-2	30 Áin	0.76 Ám	0.1 in	2.54 mm	8.64 mm	0.34 in	All	Tin	Receptacle Bottom or Top Entry	Black	Square	2		105 ░C	-65 ░C	Solder	Polyester Glass Filled	24	2.54 mm	0.1 in	Phosphor Bronze		Female Socket	Through Hole				Push-Pull	150 Áin	3.81 Ám								Gold
TE Connectivity Raychem Cable Protection 1-535584-4	100 çin	2.54 çm	0.1 in	2.54 mm	6.73 mm	0.265 in	All	Tin-Lead	Receptacle	Black	Square	1	2 A	125 °C	-65 ░C	Solder		15			Phosphor Bronze		Female Socket	Through Hole	Board to Board Cable	3.18 mm	0.125 in	Push-Pull	100 µin	2.54 µm								Tin-Lead
TE Connectivity Raychem Cable Protection 2-535542-5	30 Áin	0.76 Ám	0.1 in	2.54 mm	6.73 mm	0.265 in	All	Tin-Lead	Receptacle Bottom or Top Entry	Black	Square	2	2 A	125 °C	-65 ░C	Solder	Polyester Glass Filled	50	2.54 mm	0.1 in	Phosphor Bronze		Female Socket	Through Hole	Board to Board Cable			Push-Pull	150 Áin	3.81 Ám								Gold	3.3 mm	0.13 in
TE Connectivity Raychem Cable Protection 2-535542-2	30 Áin	0.76 Ám	0.1 in	2.54 mm	6.73 mm	0.265 in	All	Tin-Lead	Receptacle Bottom or Top Entry	Black	Square	2	2 A	125 °C	-65 ░C	Solder	Polyester Glass Filled	44	2.54 mm	0.1 in	Phosphor Bronze		Female Socket	Through Hole	Board to Board Cable			Push-Pull	150 Áin	3.81 Ám								Gold	3.3 mm	0.13 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	600	$ 5.79
Newark	Each	500	$ 4.94

Description

General part information

Modu Connector System Series

Headers & Wire Housings STANDARD PRESSURE 32-27 AWG gold
