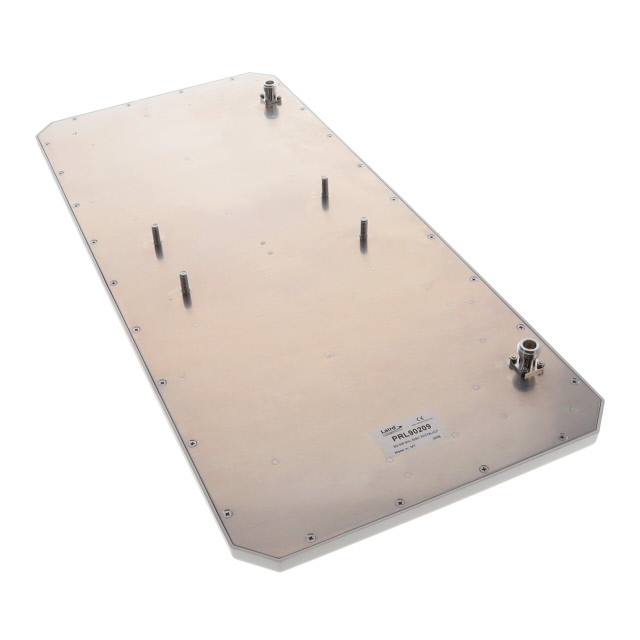

PRL90209-FNF
ActiveTE Connectivity Raychem Cable Protection
MOTOROLA DUAL POL PANEL AN440
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PRL90209-FNF
ActiveTE Connectivity Raychem Cable Protection
MOTOROLA DUAL POL PANEL AN440
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PRL90209-FNF |
|---|---|
| Antenna Type | Panel |
| Applications | General Purpose |
| Frequency (Center/Band) | 915 MHz |
| Frequency Group [Max] | 1 GHz |
| Frequency Group [Min] | 300 MHz |
| Frequency Range [Max] | 928 MHz |
| Frequency Range [Min] | 902 MHz |
| Gain | 9 dBi |
| Height (Max) [Max] | 33.5 mm |
| Height (Max) [Max] | 1.319 in |
| Ingress Protection | IP67 |
| Mounting Type | Chassis Mount |
| Number of Bands | 1 |
| Power - Max [Max] | 10 W |
| Termination | N Type Female |
| VSWR | 1.4 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 3 | $ 178.26 | |
| 10 | $ 170.73 | |||
| 25 | $ 166.97 | |||
Description
General part information
PRL90209 Series
RF ANTENNA General Purpose Panel N Type Female Chassis Mount
