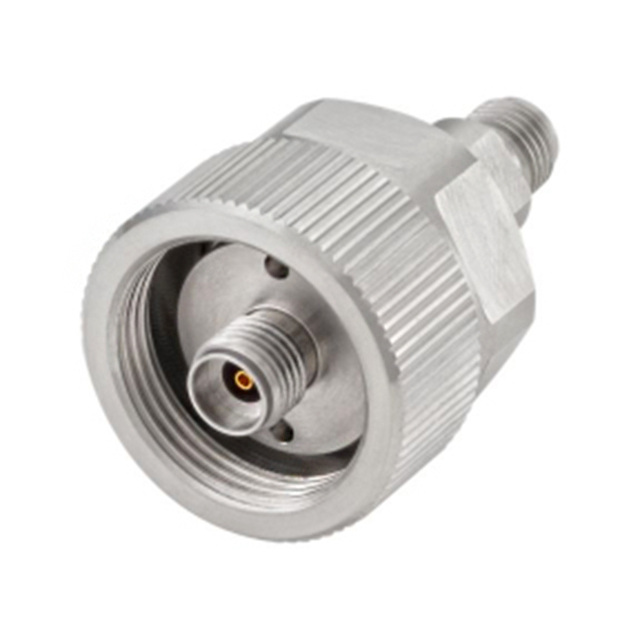

02KR121-K0AS3

Active

Rosenberger

PRECISION 2.92 TESTPORT ADAPTER

Search across all available documentation for this part.

Active

Rosenberger

PRECISION 2.92 TESTPORT ADAPTER

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1077.40

General part information

Adapter Coaxial Connector 2.92mm (OS-2.9) Jack, Female Socket To 2.92mm (OS-2.9) Jack, Female Socket 50 Ohms

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	02KR121-K0AS3	02KR121 Series

Adapter Series	RPC-2.92 to RPC-2.92	RPC-2.92 to RPC-2.92
Adapter Type	Jack to Jack	Jack to Jack, Plug to Jack
Body Material	Stainless Steel	Stainless Steel
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Center Gender	Female to Female	Female to Female
Conversion Type	Same Series	Same Series
Convert From (Adapter End)	2.92 mm	2.92 mm
Convert From (Adapter End)	OS-2.9, Jack, Female Socket	OS-2.9, Jack, Female Socket
Convert To (Adapter End)	2.92 mm	2.92 mm
Convert To (Adapter End)	OS-2.9 Jack, Female Socket	OS-2.9 Jack, Female Socket, 2.92mm (OS-2.9) Plug, Male Pin
Dielectric Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Frequency - Max [Max]	40 GHz	40 GHz
Impedance	50 Ohms	50 Ohms
Insertion Loss	0.25 dB	0.25 dB
Mating Cycles	500	500
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Style	Straight	Straight

PRECISION 2.92 TESTPORT ADAPTER

Part	Style	Adapter Series	Center Gender	Mating Cycles	Body Material	Center Contact Plating	Insertion Loss	Mounting Type	Center Contact Material	Frequency - Max [Max]	Adapter Type	Impedance	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Convert To (Adapter End)	Convert To (Adapter End)	Conversion Type	Convert From (Adapter End)	Convert From (Adapter End)
Rosenberger 02KR121-K0AS3	Straight	RPC-2.92 to RPC-2.92	Female to Female	500	Stainless Steel	Gold	0.25 dB	Free Hanging (In-Line)	Beryllium Copper	40 GHz	Jack to Jack	50 Ohms	Polyetheretherketone (PEEK)	85 °C	-40 °C	2.92 mm	OS-2.9 Jack, Female Socket	Same Series	2.92 mm	Jack, Female Socket, OS-2.9
Rosenberger 02KR121-SR00S3	Straight	RPC-2.92 to RPC-2.92		500	Stainless Steel	Gold	0.25 dB	Free Hanging (In-Line)	Beryllium Copper	40 GHz	Plug to Jack	50 Ohms	Polyetheretherketone (PEEK)	85 °C	-40 °C		2.92mm (OS-2.9) Plug, Male Pin	Same Series	2.92 mm	Jack, Female Socket, OS-2.9
