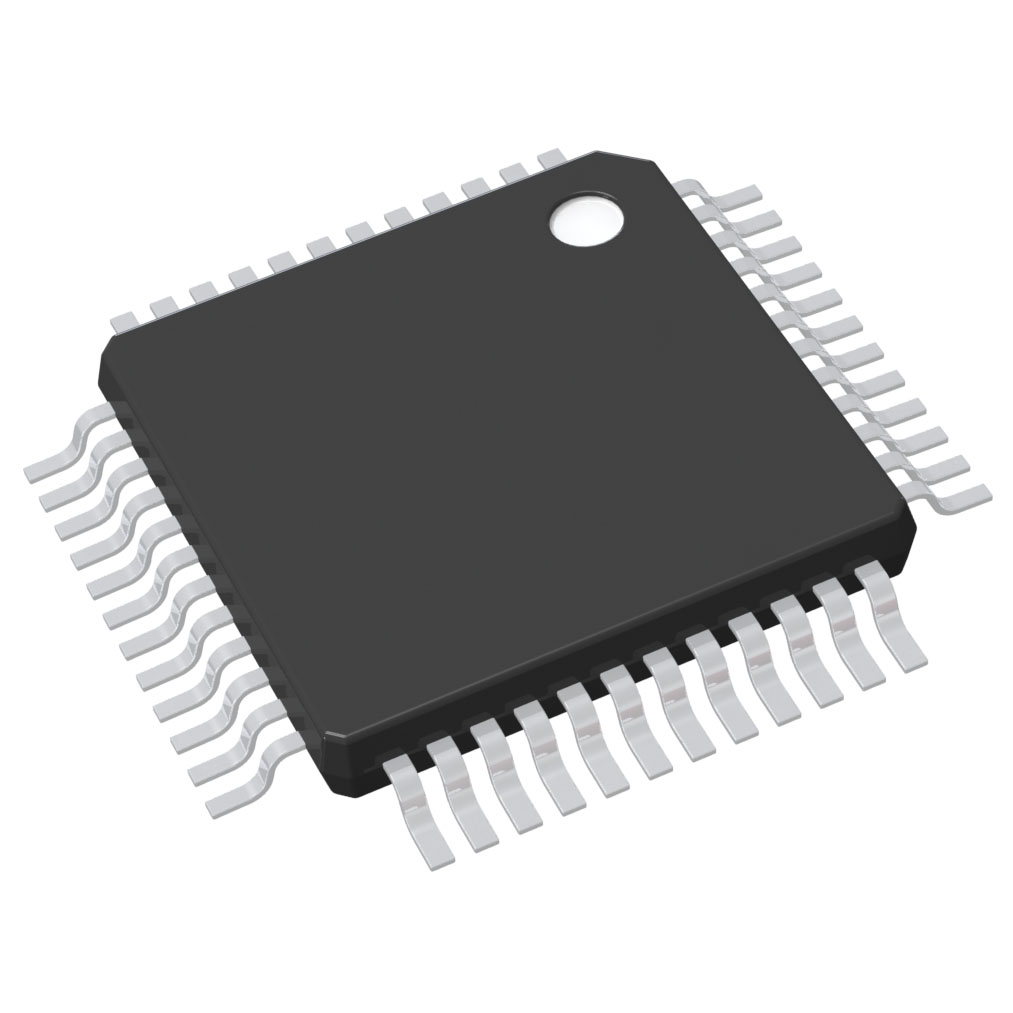

ZL38002QDG1
ActiveMicrochip Technology
ECHO CANCELLER CHIP 1-CH G.711 WITH TONE DETECTION 48-PIN TQFP TRAY
Deep-Dive with AI
Search across all available documentation for this part.
ZL38002QDG1
ActiveMicrochip Technology
ECHO CANCELLER CHIP 1-CH G.711 WITH TONE DETECTION 48-PIN TQFP TRAY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ZL38002QDG1 | ZL38002 Series |
|---|---|---|
| - | - | |
| Function | Echo Cancellation | Echo Cancellation |
| Interface | Serial | Serial |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Circuits | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 48-TQFP | 48-TQFP |
| Power (Watts) | 90 mW | 90 mW |
| Supplier Device Package | 48-TQFP (7x7) | 48-TQFP (7x7) |
| Voltage - Supply [Max] | 3.6 V | 3.6 V |
| Voltage - Supply [Min] | 2.7 V | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
ZL38002 Series
ECHO CANCELLER CHIP 1-CH G.711 WITH TONE DETECTION 48-PIN TQFP TRAY
| Part | Power (Watts) | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Interface | Package / Case | Number of Circuits | Function | Mounting Type | Voltage - Supply [Min] | Voltage - Supply [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology ZL38002QDG1 | 90 mW | 85 °C | -40 °C | 48-TQFP (7x7) | Serial | 48-TQFP | 1 | Echo Cancellation | Surface Mount | 2.7 V | 3.6 V |
Microchip Technology ZL38002QDG1 |
Description
General part information
ZL38002 Series
112 ms acoustic echo canceller
Up to 12 dB of noise reduction
Works with low cost voice codec. ITU-T G.711 orsigned mag µ/A-Law, or linear 2’s compliment
