PI4ULS3V304AZMAEX
ActiveDiodes Inc
140MB/S BI-DIRECTIONAL LEVEL TRANSLATOR FOR PUSH-PULL APPLICATIONS
Deep-Dive with AI
Search across all available documentation for this part.
PI4ULS3V304AZMAEX
ActiveDiodes Inc
140MB/S BI-DIRECTIONAL LEVEL TRANSLATOR FOR PUSH-PULL APPLICATIONS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PI4ULS3V304AZMAEX |
|---|---|
| Channel Type | Bidirectional |
| Channels per Circuit | 4 |
| Data Rate | 140 Mbps |
| Mounting Type | Surface Mount |
| Number of Circuits | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Non-Inverted |

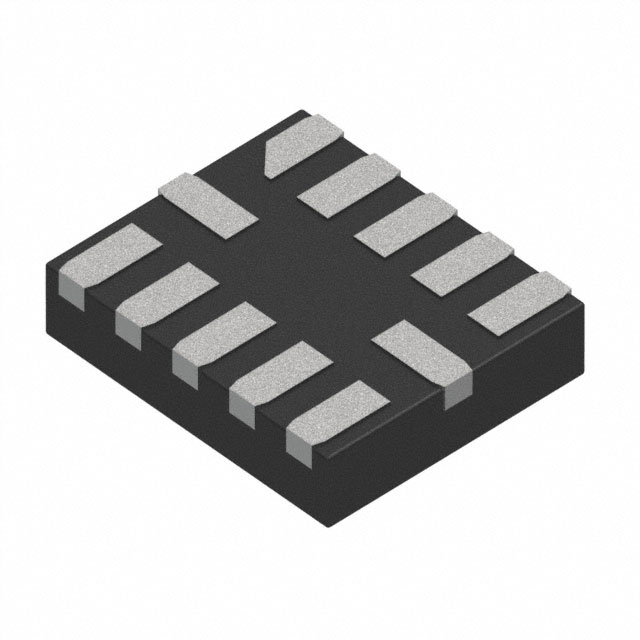

| Package / Case | 12-UFQFN |
| Supplier Device Package | 12-UQFN |
| Supplier Device Package [x] | 1.7 |
| Supplier Device Package [y] | 2 |
| Translator Type | Voltage Level |
| Voltage - VCCA [Max] [custom] | 2 V |
| Voltage - VCCA [Min] [custom] | 0.9 V |
| Voltage - VCCB [Max] | 3.6 V |
| Voltage - VCCB [Min] | 1.65 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.07 | |
| 10 | $ 0.95 | |||
| 25 | $ 0.90 | |||
| 100 | $ 0.74 | |||
| 250 | $ 0.69 | |||
| 500 | $ 0.61 | |||
| 1000 | $ 0.48 | |||
| Digi-Reel® | 1 | $ 1.07 | ||
| 10 | $ 0.95 | |||
| 25 | $ 0.90 | |||
| 100 | $ 0.74 | |||
| 250 | $ 0.69 | |||
| 500 | $ 0.61 | |||
| 1000 | $ 0.48 | |||
| Tape & Reel (TR) | 3000 | $ 0.45 | ||
| 6000 | $ 0.43 | |||
| 15000 | $ 0.41 | |||
Description
General part information
PI4ULS3V304A Series
The PI4ULS3V304A is a 4-bit configurable dual-supply autosensing bidirectional level translator that does not require a direction control pin. The B and A ports are designed to track two different power supply rails, VCCB and VCCA respectively.
