Description
General part information
EN95F4

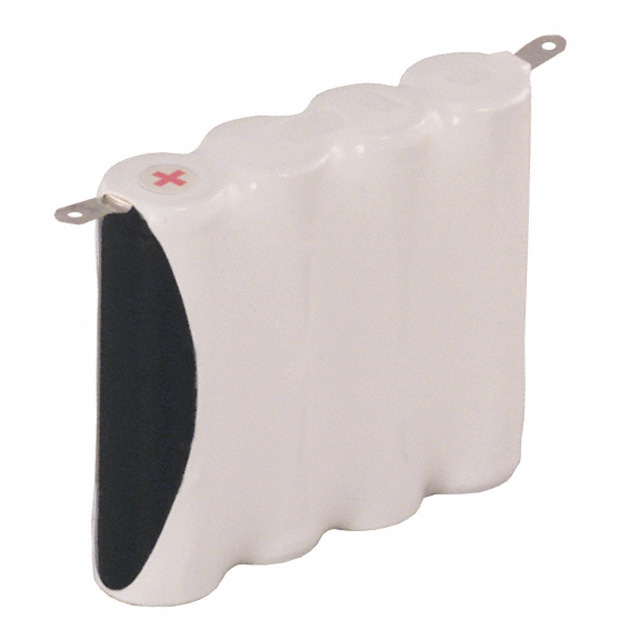

D 6 V Alkaline Manganese Dioxide Battery Pack
Technical Specifications
Parameters and characteristics for this part
| Specification | EN95F4 |
|---|---|
| Battery Cell Size | D |
| Battery Chemistry | Alkaline Manganese Dioxide |
| Number of Cells | 4 |
| Rechargeability | No |
| Size / Dimension Height | 2.42 in |
| Size / Dimension Length | 5.39 in |
| Size / Dimension Width | 34.29 mm |
| Structure | Side to Side |
| Structure Cells | 4 |
| Structure Rows | 1 |
| Termination Style | Solder Tab |
| Voltage - Rated | 6 VDC |
| Weight | 589.7 g |
