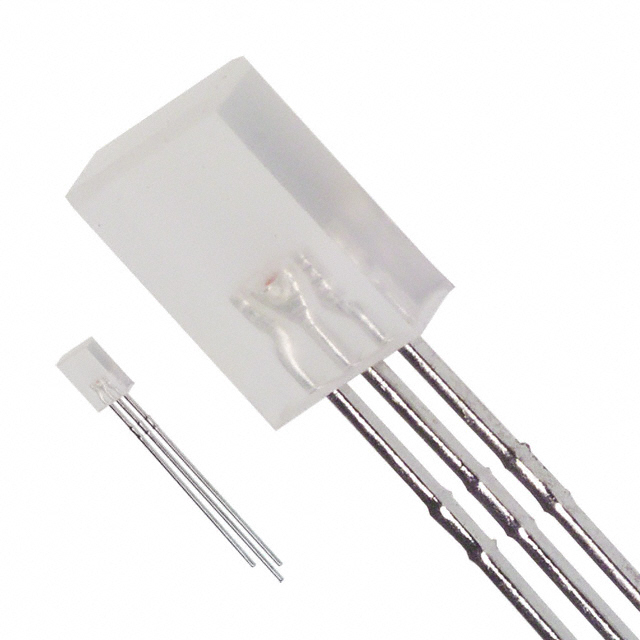

SSL-LX2577IGW

Active

Lumex Opto/Components Inc.

LED GRN/RED DIFF RECT 2X5MM T/H

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED GRN/RED DIFF RECT 2X5MM T/H

Technical Specifications

Parameters and characteristics for this part

LED GRN/RED DIFF RECT 2X5MM T/H

Part	Height (Max) [Max] [z]	Voltage - Forward (Vf) (Typ)	Package / Case	Lens Style	Supplier Device Package	Wavelength - Peak	Lens Size [y]	Lens Size [x]	Color	Millicandela Rating	Viewing Angle [custom]	Lens Color	Mounting Type	Lens Transparency	Configuration	Current - Test
Lumex Opto/Components Inc. SSL-LX2577IGW	7 mm	2 V, 2.2 V	Radial - 3 Leads	Rectangle with Flat Top	Rectangular 2mmx5mm	565 nm, 635 nm	2 mm	5 mm	Green, Red	10mcd Green, 10mcd Red	90 °	White	Through Hole	Diffused	Common Cathode	20 mA, 20 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Green, Red LED Indication - Discrete 2.2V Green, 2V Red Radial - 3 Leads

Technical documentation and resources

No documents available
