825
ActiveKeystone Electronics
TERM LUG STRIP 7POS 0.375" SNGLE
825
ActiveKeystone Electronics
TERM LUG STRIP 7POS 0.375" SNGLE
Description
General part information
825

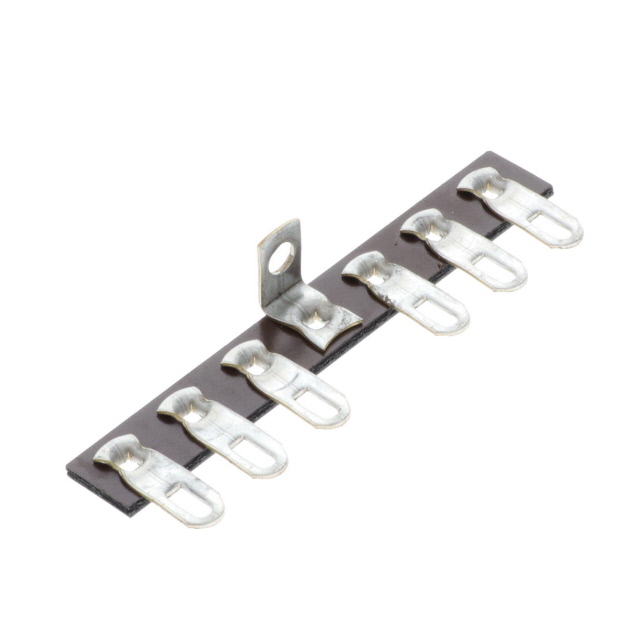

7 (6 + 1 Ground) Position Terminal Lug Strip 0.375" (9.53mm) Terminal Lug, Single End
Technical Specifications
Parameters and characteristics for this part
| Specification | 825 |
|---|---|
| Board Height | 0.062 in |
| Board Length | 2.625 in |
| Board Width | 0.375 in |
| Contact Finish | Tin |
| Contact Material | Brass |
| Features | Standard Strip |
| Material - Board | XP Phenolic |
| Mounting Hole Diameter | 0.14 in |
| Number of Positions | 7 |
| Number of Rows | 1 |
| Pitch | 0.375 in |
| Position Types | Ground |
| Terminal Type | Terminal Lug, Single End |
| Type | Terminal Lug Strip |
