Description
General part information

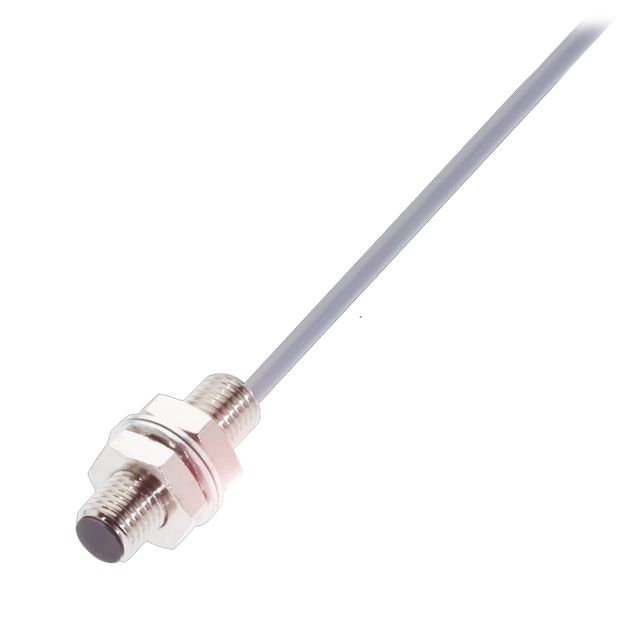

BES00TM
SENSOR PROX INDUCTIVE 1.5MM MOD
Technical Specifications
Parameters and characteristics for this part
| Specification | BES00TM |
|---|---|
| Indicator | LED |
| Ingress Protection | IP68 |
| Material - Body | Stainless Steel |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | 3-Wire, NPN-NO |
| Package / Case | Module |
| Sensing Distance | 0.059 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Cable |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
