11312
ActiveKeystone Electronics
TERM TURRET SINGLE L=10.29MM TIN
11312
ActiveKeystone Electronics
TERM TURRET SINGLE L=10.29MM TIN
Description
General part information
11312

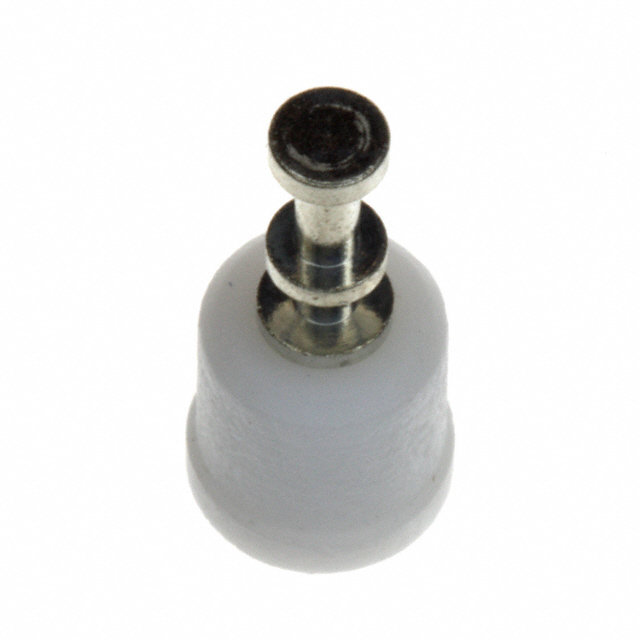

Terminal Turret Connector Single End 0.405" (10.29mm) Tin
Technical Specifications
Parameters and characteristics for this part
| Specification | 11312 |
|---|---|
| Board Thickness | 0.062 in |
| Contact Finish | Tin |
| Contact Material | Brass |
| Diameter - Turret Head | 0.08 in |
| Flange Diameter | 0.188 in |
| Insulation | Insulated |
| Insulation Color | White |
| Length - Above Board | 0.405 in |
| Length - Overall | 0.405 in |
| Material - Insulation | PTFE, Polytetrafluoroethylene |
| Mounting Hole Diameter | 0.158 in |
| Mounting Type | Through Hole |
| Number of Turrets | Double |
| Terminal Type | Single End |
| Termination | Press-Fit |
