TS2C2M20C

Active

Switchcraft Inc.

CONN PLUG MALE 2POS GOLD CRIMP

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN PLUG MALE 2POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	TS2C2M20C

Applications	Audio, Testing Equipment & Measurement, Agriculture, Medical, General
Backshell Material, Plating	Copper Alloy, Nickel
Cable Opening [Max] [diameter]	5.49 mm
Cable Opening [Max] [diameter]	0.216 in
Cable Opening [Min] [diameter]	4.57 mm
Cable Opening [Min] [diameter]	0.18 in
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Features	Coupling Nut, Backshell
Ingress Protection	IP68, IP66, IP67
Insert Material	Liquid Crystal Polymer (LCP)
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Electroless Nickel
Shell Material	Copper Alloy
Shielding	Shielded
Termination	Crimp, Solder Cup
Voltage Rating	125 VAC

CONN PLUG MALE 2POS GOLD CRIMP

Part	Connector Type	Contact Material	Shell Material	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Orientation	Shielding	Termination	Backshell Material, Plating	Shell Finish	Insert Material	Voltage Rating	Applications	Color	Ingress Protection	Primary Material	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Features	Mounting Type	Contact Finish - Mating
Switchcraft Inc. TS2C2M20C	Male Pins, Plug	Copper Alloy	Copper Alloy	5.49 mm	4.57 mm	0.18 in	0.216 in	Keyed	Shielded	Crimp, Solder Cup	Copper Alloy, Nickel	Electroless Nickel	Liquid Crystal Polymer (LCP)	125 VAC	Agriculture, Audio, General, Medical, Testing Equipment & Measurement	Silver	IP66, IP67, IP68	Metal	135 °C	-40 °C	2	Backshell, Coupling Nut	Free Hanging (In-Line)	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

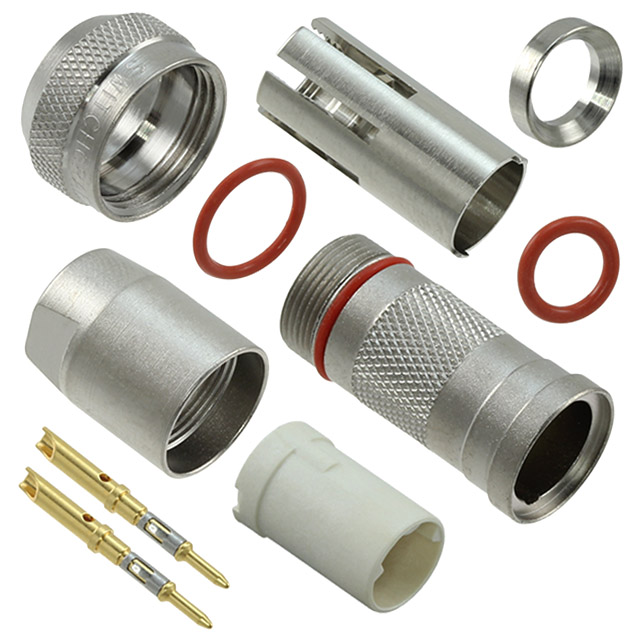

2 Position Circular Connector Plug, Male Pins Crimp or Solder Cup
