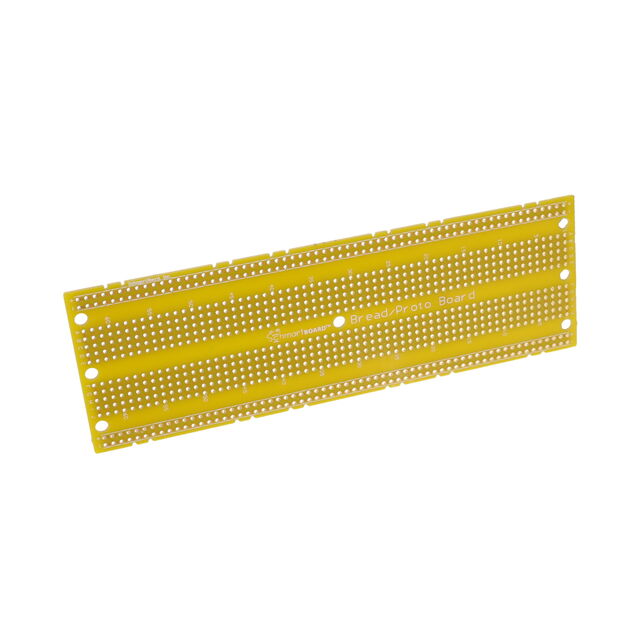

201-0016-01

Active

Schmartboard, Inc.

830 TIE POINT SCHMARTBOARD BREAD

Search across all available documentation for this part.

Active

Schmartboard, Inc.

830 TIE POINT SCHMARTBOARD BREAD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	201-0016-01	201-0016 Series

Includes	-	830 Point Breadboard
Number of 5-Tie Point Terminals	126	126
Number of Distribution Buses	2	2
Number of Terminal Strips	1	1
Number of Tie Points (Total)	830	830
Size / Dimension [x]	164.8 mm	164.8 mm
Size / Dimension [x]	6.49 in	6.49 in
Size / Dimension [y]	2.1 in	2.1 in
Size / Dimension [y]	53.3 mm	53.3 mm
Type	Terminal Strip (No Frame)	Terminal Strip (No Frame)

830 TIE POINT SCHMARTBOARD BREAD

Part	Number of 5-Tie Point Terminals	Type	Number of Tie Points (Total)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Number of Terminal Strips	Number of Distribution Buses	Includes
Schmartboard, Inc. 201-0016-01	126	Terminal Strip (No Frame)	830	164.8 mm	6.49 in	2.1 in	53.3 mm	1	2
Schmartboard, Inc. 201-0016-31	126	Terminal Strip (No Frame)	830	164.8 mm	6.49 in	2.1 in	53.3 mm	1	2	830 Point Breadboard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 7.95

General part information

Solderless Breadboard Terminal Strip (No Frame) 6.49" L x 2.10" W (164.8mm x 53.3mm)

Technical documentation and resources
