FJ9SCST-15M

Active

UNC Group

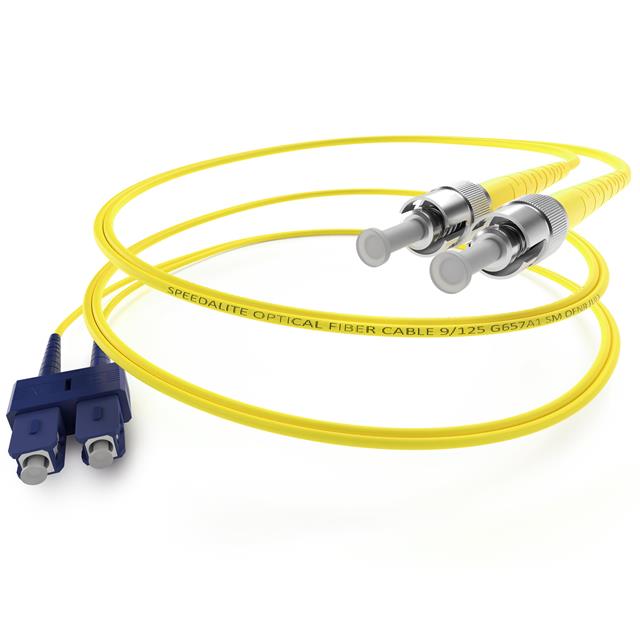

SINGLEMODE SC TO ST FIBER 15M

Deep-Dive with AI

Search across all available documentation for this part.

FJ9SCST-15M

Active

UNC Group

SINGLEMODE SC TO ST FIBER 15M

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FJ9SCST-15M	FJ9SCST Series

1st Connector	SC Duplex	SC Duplex
2nd Connector	ST (2)	ST (2)
Bend Radius [radius]	10 mm	10 mm
Cable Diameter [diameter]	2 mm	2 mm
Cable Diameter [diameter]	0.08 in	0.08 in
Cable Type	Twin Zip, Bend Insensitive Fiber (BIF)	Twin Zip, Bend Insensitive Fiber (BIF)
Color - Cable	Yellow	Yellow
Color - Connectors	Blue, Yellow	Blue, Yellow
Features	Dust Cap, Zipcord, Riser	Dust Cap, Zipcord, Riser
Fiber Type	9/125	9/125
Insertion Loss	0.2 dB	0.2 dB
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Length - Overall	-	30 m
Length - Overall [x]	15 m	4 - 25 m
Length - Overall [x]	49.2 '	13.1 - 98.4 ft
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-20 C	-20 C
Ratings	OFNR	OFNR
Return Loss	55 dB	55 dB
Type	Singlemode, OS2, Duplex	Singlemode, OS2, Duplex

FJ9SCST Series

SINGLEMODE SC TO ST FIBER 7M

Part	Insertion Loss	Length - Overall [x]	Length - Overall [x]	1st Connector	2nd Connector	Cable Diameter [diameter]	Cable Diameter [diameter]	Return Loss	Color - Cable	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	Features	Ratings	Bend Radius [radius]	Fiber Type	Type	Jacket (Insulation) Material	Color - Connectors	Length - Overall
UNC Group FJ9SCST-07M	0.2 dB	7 m	23 ft	SC Duplex	ST (2)	2 mm	0.08 in	55 dB	Yellow	-20 C	60 °C	Twin Zip, Bend Insensitive Fiber (BIF)	Dust Cap, Riser, Zipcord	OFNR	10 mm	9/125	Duplex, OS2, Singlemode	Poly-Vinyl Chloride (PVC)	Blue, Yellow
UNC Group FJ9SCST-15M	0.2 dB	15 m	49.2 '	SC Duplex	ST (2)	2 mm	0.08 in	55 dB	Yellow	-20 C	60 °C	Twin Zip, Bend Insensitive Fiber (BIF)	Dust Cap, Riser, Zipcord	OFNR	10 mm	9/125	Duplex, OS2, Singlemode	Poly-Vinyl Chloride (PVC)	Blue, Yellow
UNC Group FJ9SCST-30M	0.2 dB		98.4 ft	SC Duplex	ST (2)	2 mm	0.08 in	55 dB	Yellow	-20 C	60 °C	Twin Zip, Bend Insensitive Fiber (BIF)	Dust Cap, Riser, Zipcord	OFNR	10 mm	9/125	Duplex, OS2, Singlemode	Poly-Vinyl Chloride (PVC)	Blue, Yellow	30 m
UNC Group FJ9SCST-08M	0.2 dB	8 m	26.2 ft	SC Duplex	ST (2)	2 mm	0.08 in	55 dB	Yellow	-20 C	60 °C	Twin Zip, Bend Insensitive Fiber (BIF)	Dust Cap, Riser, Zipcord	OFNR	10 mm	9/125	Duplex, OS2, Singlemode	Poly-Vinyl Chloride (PVC)	Blue, Yellow
UNC Group FJ9SCST-06M	0.2 dB	6 m	19.7 ft	SC Duplex	ST (2)	2 mm	0.08 in	55 dB	Yellow	-20 C	60 °C	Twin Zip, Bend Insensitive Fiber (BIF)	Dust Cap, Riser, Zipcord	OFNR	10 mm	9/125	Duplex, OS2, Singlemode	Poly-Vinyl Chloride (PVC)	Blue, Yellow
UNC Group FJ9SCST-25M	0.2 dB	25 m	82 ft	SC Duplex	ST (2)	2 mm	0.08 in	55 dB	Yellow	-20 C	60 °C	Twin Zip, Bend Insensitive Fiber (BIF)	Dust Cap, Riser, Zipcord	OFNR	10 mm	9/125	Duplex, OS2, Singlemode	Poly-Vinyl Chloride (PVC)	Blue, Yellow
UNC Group FJ9SCST-12M	0.2 dB	12 m	39.4 ft	SC Duplex	ST (2)	2 mm	0.08 in	55 dB	Yellow	-20 C	60 °C	Twin Zip, Bend Insensitive Fiber (BIF)	Dust Cap, Riser, Zipcord	OFNR	10 mm	9/125	Duplex, OS2, Singlemode	Poly-Vinyl Chloride (PVC)	Blue, Yellow
UNC Group FJ9SCST-04M	0.2 dB	4 m	13.1 '	SC Duplex	ST (2)	2 mm	0.08 in	55 dB	Yellow	-20 C	60 °C	Twin Zip, Bend Insensitive Fiber (BIF)	Dust Cap, Riser, Zipcord	OFNR	10 mm	9/125	Duplex, OS2, Singlemode	Poly-Vinyl Chloride (PVC)	Blue, Yellow
UNC Group FJ9SCST-20M	0.2 dB	20 m	65.6 ft	SC Duplex	ST (2)	2 mm	0.08 in	55 dB	Yellow	-20 C	60 °C	Twin Zip, Bend Insensitive Fiber (BIF)	Dust Cap, Riser, Zipcord	OFNR	10 mm	9/125	Duplex, OS2, Singlemode	Poly-Vinyl Chloride (PVC)	Blue, Yellow
UNC Group FJ9SCST-09M	0.2 dB	9 m	29.5 '	SC Duplex	ST (2)	2 mm	0.08 in	55 dB	Yellow	-20 C	60 °C	Twin Zip, Bend Insensitive Fiber (BIF)	Dust Cap, Riser, Zipcord	OFNR	10 mm	9/125	Duplex, OS2, Singlemode	Poly-Vinyl Chloride (PVC)	Blue, Yellow

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.06
		20	$ 13.78
		60	$ 13.50
		100	$ 13.22
		200	$ 12.93

Description

General part information

FJ9SCST Series

Cable Fiber Optic SC Duplex To ST (2) 9/125 49.2' (15.0m)

Documents

Technical documentation and resources

No documents available
