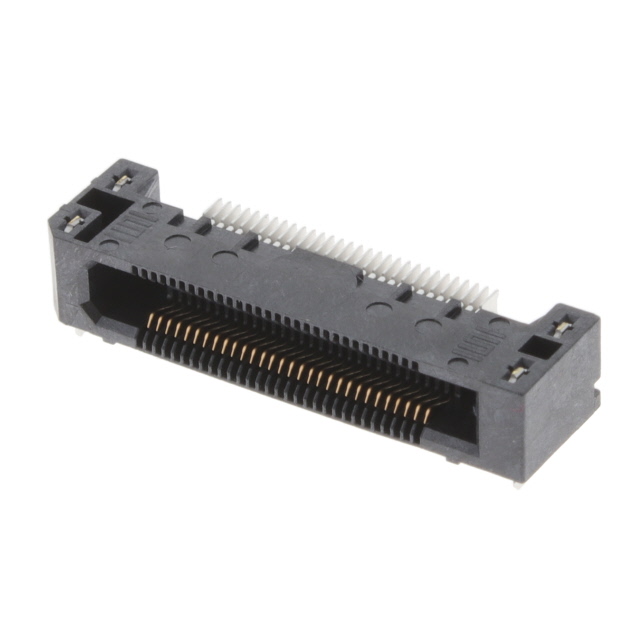

ERF5-030-01-L-D-RA-TR

Active

Samtec Inc.

CONN HIGH SPEED SOCKET STRIP SKT 60 POS 0.5MM SOLDER RA SIDE ENTRY SMD EDGE RATE® T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsERF5 Series Other Related Documents 03 Datasheet +2

ERF5-030-01-L-D-RA-TR

Active

Samtec Inc.

CONN HIGH SPEED SOCKET STRIP SKT 60 POS 0.5MM SOLDER RA SIDE ENTRY SMD EDGE RATE® T/R

Deep-Dive with AI

DocumentsERF5 Series Other Related Documents 03 Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ERF5-030-01-L-D-RA-TR

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Board Guide
Height Above Board	4.75 mm
Height Above Board [z]	0.187 in
Mounting Type	Surface Mount, Right Angle
Number of Positions	60
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

ERF5-030 Series

Part	Connector Type	Number of Positions	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Mated Stacking Heights	Contact Finish	Number of Rows	Height Above Board [z]	Height Above Board [z]	Pitch [x]	Pitch [x]	Features	Height Above Board
Samtec Inc. ERF5-030-07.0-L-DV-K-TR	Socket Center Strip Contacts	60	Surface Mount	10 Áin	0.25 Ám	9 mm 11 mm 12 mm	Gold	2	6.9 mm	0.272 in	0.5 mm	0.02 in	Board Guide Pick and Place
Samtec Inc. ERF5-030-07.0-L-DV-FL-TR	Socket Center Strip Contacts	60	Surface Mount	10 Áin	0.25 Ám	9 mm 11 mm 12 mm	Gold	2	6.9 mm	0.272 in	0.5 mm	0.02 in	Board Lock Solder Retention
Samtec Inc. ERF5-030-05.0-S-DV-TR	Socket Center Strip Contacts	60	Surface Mount	30 Áin	0.76 Ám	7 mm 9 mm 10 mm	Gold	2	4.9 mm	0.193 in	0.5 mm	0.02 in	Board Guide
Samtec Inc. ERF5-030-05.0-L-DV-K-TR	Socket Center Strip Contacts	60	Surface Mount	10 Áin	0.25 Ám	7 mm 9 mm 10 mm	Gold	2	4.9 mm	0.193 in	0.5 mm	0.02 in	Board Guide Pick and Place
Samtec Inc. ERF5-030-05.0-L-DV-WT-K-TR	Socket Center Strip Contacts	60	Surface Mount	10 Áin	0.25 Ám	7 mm 9 mm 10 mm	Gold	2	4.9 mm	0.193 in	0.5 mm	0.02 in	Board Guide Pick and Place Solder Retention
Samtec Inc. ERF5-030-07.0-S-DV-K-TR	Socket Center Strip Contacts	60	Surface Mount	30 Áin	0.76 Ám	9 mm 11 mm 12 mm	Gold	2	6.9 mm	0.272 in	0.5 mm	0.02 in	Board Guide Pick and Place
Samtec Inc. ERF5-030-01-L-D-RA-TR	Socket Center Strip Contacts	60	Surface Mount Right Angle	10 Áin	0.25 Ám		Gold	2		0.187 in	0.5 mm	0.02 in	Board Guide	4.75 mm
Samtec Inc. ERF5-030-05.0-L-DV-FL-TR	Socket Center Strip Contacts	60	Surface Mount	10 Áin	0.25 Ám	7 mm 9 mm 10 mm	Gold	2	4.9 mm	0.193 in	0.5 mm	0.02 in	Board Lock Solder Retention
Samtec Inc. ERF5-030-05.0-L-DV-FL-K-TR	Socket Center Strip Contacts	60	Surface Mount	10 Áin	0.25 Ám	7 mm 9 mm 10 mm	Gold	2	4.9 mm	0.193 in	0.5 mm	0.02 in	Board Lock Pick and Place Solder Retention
Samtec Inc. ERF5-030-05.0-L-DV-TR	Socket Center Strip Contacts	60	Surface Mount	10 Áin	0.25 Ám	7 mm 9 mm 10 mm	Gold	2	4.9 mm	0.193 in	0.5 mm	0.02 in	Board Guide
