HF659/26SF

Active

80001241464 HF659/26SF=26/CAB/GRAY/RJFL/SHLD/HF/28AWG/STR/.050/275FT ROLL ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HF659/26SF

Active

80001241464 HF659/26SF=26/CAB/GRAY/RJFL/SHLD/HF/28AWG/STR/.050/275FT ROLL ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HF659/26SF	HF659 Series

Cable Type	Round Jacket, Flat Cable	Round Jacket, Flat Cable
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	7	7
Conductor Strand [custom]	36 AWG	36 AWG
Features	Zippable, Splice Free	Zippable, Splice Free
First Conductor Mark	Blue	Blue
Insulation Resistance	10 GOhm	10 GOhm
Jacket (Insulation) Material	Polyolefin (PO)	Polyolefin (PO)
Jacket Color	Gray	Gray
Length	15.24 m, 7.62 m	7.62 - 83.82 m
Length	50 ft, 25 ft	25 - 275 ft
Length [x]	3.05 m	3.05 - 30.48 m
Length [x]	10 ft	10 - 100 ft
Number of Conductors	26	9 - 64
Operating Temperature [Max]	75 ░C	75 ░C
Operating Temperature [Min]	-15 °C	-15 °C
Pitch [x]	0.05 in	0.05 in
Pitch [x]	1.27 mm	1.27 mm
Ratings	UL Style 22170	UL Style 22170
Ribbon Width	-	10.2 - 80.01 mm
Ribbon Width	-	0.402 - 3.15 in
Ribbon Width	-	1.2 in
Ribbon Width	-	30.48 mm
Ribbon Width [x]	1.25 "	0.7 - 2.95 in
Ribbon Width [x]	31.75 mm	17.78 - 31.75 mm
Shielding	Shielded	Shielded
Voltage	150 V	150 V
Wire Gauge	28 AWG	28 AWG

HF659 Series

CBL RIBN 15COND 0.05 GRAY 275'

Part	Ribbon Width [x]	Ribbon Width [x]	Jacket Color	First Conductor Mark	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Jacket (Insulation) Material	Ratings	Conductor Material	Insulation Resistance	Cable Type	Length	Length	Shielding	Features	Voltage	Number of Conductors	Wire Gauge	Ribbon Width	Ribbon Width	Length [x]	Length [x]	Ribbon Width [y]	Ribbon Width [y]
3M HF659/15	0.7 in	17.78 mm	Gray	Blue	7	36 AWG	-15 °C	75 ░C	0.05 in	1.27 mm	Polyolefin (PO)	UL Style 22170	Copper, Tinned	10 GOhm	Flat Cable, Round Jacket	83.82 m	275 ft	Shielded	Zippable	150 V	15	28 AWG
3M HF659/64SF			Gray	Blue	7	36 AWG	-15 °C	75 ░C	0.05 in	1.27 mm	Polyolefin (PO)	UL Style 22170	Copper, Tinned	10 GOhm	Flat Cable, Round Jacket	83.82 m	275 ft	Shielded	Splice Free, Zippable	150 V	64	28 AWG	80.01 mm	3.15 in
3M HF659/26SF	1.25 "	31.75 mm	Gray	Blue	7	36 AWG	-15 °C	75 ░C	0.05 in	1.27 mm	Polyolefin (PO)	UL Style 22170	Copper, Tinned	10 GOhm	Flat Cable, Round Jacket	7.62 m, 15.24 m	25 ft, 50 ft	Shielded	Splice Free, Zippable	150 V	26	28 AWG			3.05 m	10 ft
3M HF659/09			Gray	Blue	7	36 AWG	-15 °C	75 ░C	0.05 in	1.27 mm	Polyolefin (PO)	UL Style 22170	Copper, Tinned	10 GOhm	Flat Cable, Round Jacket	83.82 m	275 ft	Shielded	Zippable	150 V	9	28 AWG	10.2 mm	0.402 in
3M HF659/64			Gray	Blue	7	36 AWG	-15 °C	75 ░C	0.05 in	1.27 mm	Polyolefin (PO)	UL Style 22170	Copper, Tinned	10 GOhm	Flat Cable, Round Jacket	83.82 m	275 ft	Shielded	Zippable	150 V	64	28 AWG	80.01 mm	3.15 in
3M HF659/60	2.95 in		Gray	Blue	7	36 AWG	-15 °C	75 ░C	0.05 in	1.27 mm	Polyolefin (PO)	UL Style 22170	Copper, Tinned	10 GOhm	Flat Cable, Round Jacket	83.82 m	275 ft	Shielded	Zippable	150 V	60	28 AWG	74.93 mm
3M HF659/10			Gray	Blue	7	36 AWG	-15 °C	75 ░C	0.05 in	1.27 mm	Polyolefin (PO)	UL Style 22170	Copper, Tinned	10 GOhm	Flat Cable, Round Jacket	83.82 m	275 ft	Shielded	Zippable	150 V	10	28 AWG	11.43 mm	0.45 in
3M HF659/20SF			Gray	Blue	7	36 AWG	-15 °C	75 ░C	0.05 in	1.27 mm	Polyolefin (PO)	UL Style 22170	Copper, Tinned	10 GOhm	Flat Cable, Round Jacket	83.82 m	275 ft	Shielded	Splice Free, Zippable	150 V	20	28 AWG	24.13 mm	0.95 "	30.48 m	100 ft
3M HF659/10SF			Gray	Blue	7	36 AWG	-15 °C	75 ░C	0.05 in	1.27 mm	Polyolefin (PO)	UL Style 22170	Copper, Tinned	10 GOhm	Flat Cable, Round Jacket	7.62 m, 15.24 m, 83.82 m	25 ft, 50 ft, 275 ft	Shielded	Splice Free, Zippable	150 V	10	28 AWG	11.43 mm	0.45 in	3.05 m, 30.48 m	10 ft, 100 ft
3M HF659/25SF			Gray	Blue	7	36 AWG	-15 °C	75 ░C	0.05 in	1.27 mm	Polyolefin (PO)	UL Style 22170	Copper, Tinned	10 GOhm	Flat Cable, Round Jacket	7.62 m, 15.24 m, 83.82 m	25 ft, 50 ft, 275 ft	Shielded	Splice Free, Zippable	150 V	25	28 AWG			3.05 m	10 ft	1.2 in	30.48 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 35.21
		1	$ 128.37
		1	$ 225.29
		1	$ 59.96
		5	$ 105.13
		5	$ 49.27
		5	$ 29.05
		5	$ 183.49
		10	$ 45.32
		10	$ 96.42
		10	$ 168.39
		10	$ 26.73
		25	$ 154.46
		25	$ 40.44
		25	$ 23.94
		25	$ 85.39
		50	$ 36.95
		50	$ 77.83
		50	$ 21.96
		100	$ 33.93
		100	$ 77.25
		100	$ 20.10
Newark	Spool of 275	5	$ 1011.55
		10	$ 973.13
		25	$ 953.93

Description

General part information

HF659 Series

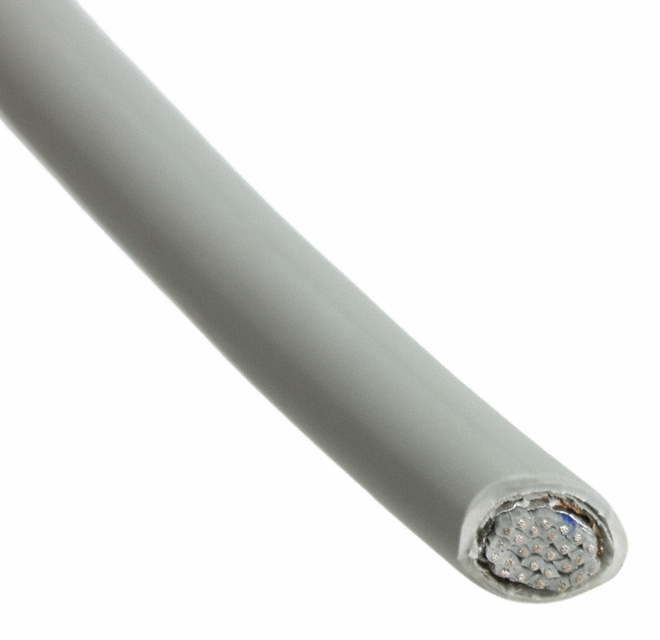

Flat Ribbon Cable Gray 26 Conductors 0.050" (1.27mm) Flat Cable, Round Jacket 25.0' (7.62m)
