009296001503406

Active

KYOCERA AVX

CONN WIRE POKE-IN

Search across all available documentation for this part.

Active

KYOCERA AVX

CONN WIRE POKE-IN

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

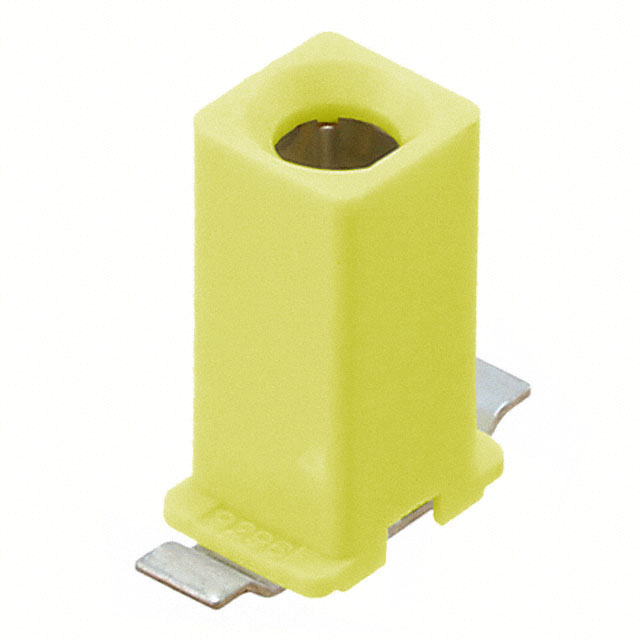

1 Position Individual Wires Connector Yellow Poke-In 18-26 AWG, Stranded or Solid Surface Mount

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	009296001503406	009296 Series

Board-Side Pitch	-	3 - 4 mm
Board-Side Pitch	-	0.118 - 0.157 "
Cable Pitch	-	0.118 in
Cable Pitch	-	3 mm
Cable Pitch	-	0.157 in
Cable Pitch	-	4 mm
Cable Termination	Poke-In	Poke-In
Color	Yellow	White, Yellow, Red, Brown, Blue, Black
Connector Type	Individual Wires	Individual Wires
Contact Finish	Tin	Tin
Features	Closed End	Closed End
Mounting Type	Surface Mount	Surface Mount, Right Angle, Surface Mount, Through Board
Number of Positions	1	1 - 6
Number of Positions Loaded	All	All
Number of Rows	1	1
Wire Gauge	Stranded or Solid	Stranded or Solid
Wire Gauge [Max]	26 AWG	22 - 26 AWG
Wire Gauge [Min]	17.5 AWG	17.5 - 20 AWG

CONN WIRE POKE-IN 5POS SMD RA

Part	Cable Termination	Mounting Type	Features	Number of Positions Loaded	Cable Pitch [x]	Cable Pitch [x]	Contact Finish	Number of Rows	Color	Board-Side Pitch	Board-Side Pitch	Wire Gauge [Min]	Wire Gauge [Max]	Connector Type	Number of Positions	Cable Pitch	Cable Pitch	Wire Gauge
KYOCERA AVX 009296005202906	Poke-In	Surface Mount, Right Angle	Closed End	All	0.118 in	3 mm	Tin	1	White	3 mm	0.118 "	20 AWG	26 AWG	Individual Wires
KYOCERA AVX 009296001402906	Poke-In	Surface Mount		All			Tin	1	White			17.5 AWG	24 AWG	Individual Wires	1
KYOCERA AVX 009296004503906	Poke-In	Surface Mount, Through Board		All			Tin	1	White	4 mm	0.157 in	17.5 AWG	26 AWG	Individual Wires	4	0.157 in	4 mm
KYOCERA AVX 009296006202906	Poke-In	Surface Mount, Right Angle	Closed End	All	0.118 in	3 mm	Tin	1	White	3 mm	0.118 "	20 AWG	26 AWG	Individual Wires	6
KYOCERA AVX 009296001503406	Poke-In	Surface Mount	Closed End	All			Tin	1	Yellow			17.5 AWG	26 AWG	Individual Wires	1			Stranded or Solid
KYOCERA AVX 009296006553906	Poke-In	Surface Mount		All			Tin	1	White	4 mm	0.157 in	17.5 AWG	26 AWG	Individual Wires	6	0.157 in	4 mm
KYOCERA AVX 009296004553906	Poke-In	Surface Mount		All			Tin	1	White	4 mm	0.157 in	17.5 AWG	26 AWG	Individual Wires	4	0.157 in	4 mm
KYOCERA AVX 009296001202506	Poke-In	Surface Mount, Right Angle	Closed End	All			Tin	1	Red			20 AWG	26 AWG	Individual Wires	1
KYOCERA AVX 009296001202906	Poke-In	Surface Mount, Right Angle	Closed End	All			Tin	1	White			20 AWG	26 AWG	Individual Wires	1
KYOCERA AVX 009296005402906	Poke-In	Surface Mount		All			Tin	1	White	4 mm	0.157 in	17.5 AWG	24 AWG	Individual Wires		0.157 in	4 mm
