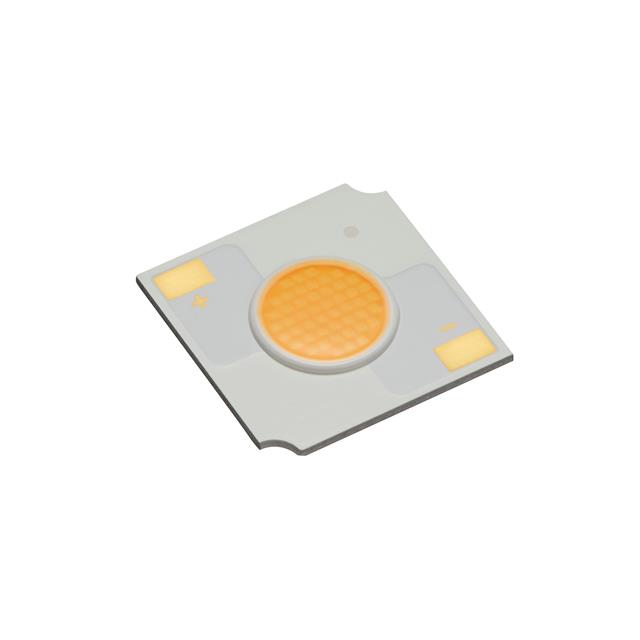

CLU713-1204E1-403M2X2

Active

Citizen

LED COB CLU713 NEUT WHT SQ 4000K

Search across all available documentation for this part.

Active

Citizen

LED COB CLU713 NEUT WHT SQ 4000K

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CLU713-1204E1-403M2X2	CLU713 Series

CCT (K)	4000 K	3000 - 4000 K
Color	Neutral, White	White, Warm, Neutral
Configuration	Square	Square
CRI (Color Rendering Index)	97	97
Current - Max [Max]	1.2 A	1.2 A
Features	With Connector	With Connector
Height [z]	1.4 mm	1.4 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES) [diameter]	8.5 mm	8.5 mm
Lumens/Watt @ Current - Test	137 lm/W	106 - 137 lm/W
Luminous Flux @ Current/Temperature	3726 lm	3557 - 3726 lm
Size / Dimension [x]	19 mm	19 mm
Size / Dimension [y]	19 mm	19 mm
Temperature - Test	85 °C	85 °C
Type	Chip On Board (COB)	Chip On Board (COB)
Voltage - Forward (Vf) (Typ)	36.5 V	36.5 V

LED COB CLU713 WM WHT SQ 3000K

Part	Lumens/Watt @ Current - Test	Color	Temperature - Test	Configuration	Light Emitting Surface (LES) [diameter]	Height [z]	Type	Voltage - Forward (Vf) (Typ)	Current - Max [Max]	Lens Type	Features	Size / Dimension [y]	Size / Dimension [x]	CCT (K)	Luminous Flux @ Current/Temperature	CRI (Color Rendering Index)
Citizen CLU713-1204E1-303M2X2	131 lm/W	Warm, White	85 °C	Square	8.5 mm	1.4 mm	Chip On Board (COB)	36.5 V	1.2 A	Flat	With Connector	19 mm	19 mm	3000 K	3557 lm	97
Citizen CLU713-1204E1-353H7X5	106 lm/W	Warm, White	85 °C	Square	8.5 mm	1.4 mm	Chip On Board (COB)	36.5 V	1.2 A	Flat	With Connector	19 mm	19 mm	3500 K		97
Citizen CLU713-1204E1-353M2X2		Warm, White	85 °C	Square	8.5 mm	1.4 mm	Chip On Board (COB)	36.5 V	1.2 A	Flat	With Connector	19 mm	19 mm	3500 K	3638 lm	97
Citizen CLU713-1204E1-403M2X2	137 lm/W	Neutral, White	85 °C	Square	8.5 mm	1.4 mm	Chip On Board (COB)	36.5 V	1.2 A	Flat	With Connector	19 mm	19 mm	4000 K	3726 lm	97

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 12.26

General part information

LED Lighting COBs Engines Modules Chip On Board (COB) CLU713 White, Neutral Square
