BC-ATP-101507
ActiveBoxco

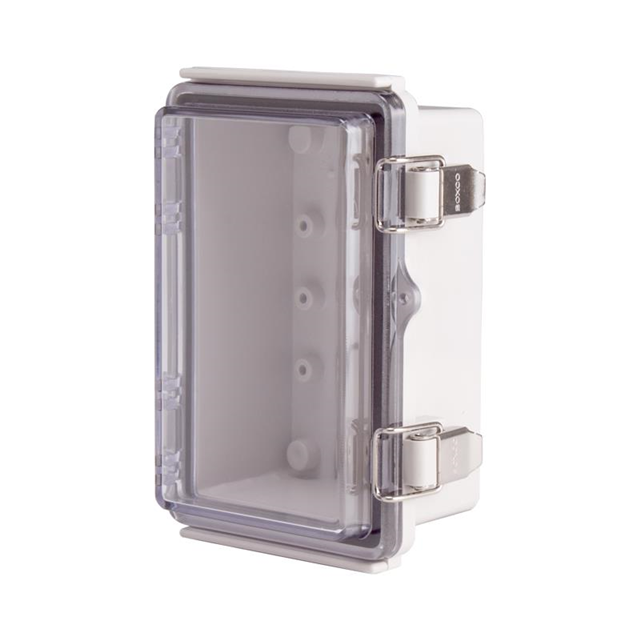

BOX ABS CLEAR 5.91"L X 3.94"W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BC-ATP-101507 | BC-ATP Series |
|---|---|---|
| Area (L x W) | 23.3 in² | 23.3 - 244 in² |
| Area (L x W) | 150 cm² | 150 - 1575 cm² |
| Area (L x W) | - | 1200 cm² |
| Area (L x W) | - | 186 in² |
| Area (L x W) | - | 68.4 in˛ |
| Color | Light Gray, Clear Cover | Light Gray, Clear Cover |
| Container Type | Box | Box |
| Design | Stainless Steel Latch, Hinged Door | Stainless Steel Latch, Hinged Door |
| Features | Latches, Hinged, Lockable, Sealing Gasket | Latches, Hinged, Lockable, Sealing Gasket |
| Height | - | 150 mm |
| Height [z] | 70 mm | 5.906 - 160 in |
| Height [z] | 2.756 " | 2.756 - 6.299 " |
| Material | ABS Body, Plastic, Polycarbonate Cover | ABS Body, Plastic, Polycarbonate Cover |
| Material Flammability Rating | UL94 HB | UL94 HB |
| Ratings | NEMA 4X, NEMA 6, IP66, IP67 | NEMA 4X, NEMA 6, IP66, IP67 |
| Size / Dimension | - | 135 mm |
| Size / Dimension [x] | 5.906 in | 5.906 - 17.717 " |
| Size / Dimension [x] | 150 mm | 150 - 450 mm |
| Size / Dimension [y] | 3.937 in | 3.937 - 13.78 " |
| Size / Dimension [y] | 100 mm | 100 - 350 mm |
| Thickness | - | 0.146 in |
| Thickness | - | 3.7 mm |
BC-ATP Series
BOX ABS CLEAR 15.75"L X 11.81"W
| Part | Material Flammability Rating | Height [z] | Height [z] | Design | Ratings | Container Type | Area (L x W) [custom] | Area (L x W) [custom] | Color | Material | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Features | Height [z] | Area (L x W) | Area (L x W) | Size / Dimension [y] | Thickness | Thickness | Area (L x W) [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Boxco BC-ATP-304015 | UL94 HB | 5.906 in | 150 mm | Hinged Door, Stainless Steel Latch | IP66, IP67, NEMA 4X, NEMA 6 | Box | 1200 cm² | 186 in² | Clear Cover, Light Gray | ABS Body, Plastic, Polycarbonate Cover | 400 mm | 11.811 " | 300 mm | 15.748 " | Hinged, Latches, Lockable, Sealing Gasket | |||||||
Boxco BC-ATP-101507 | UL94 HB | 70 mm | Hinged Door, Stainless Steel Latch | IP66, IP67, NEMA 4X, NEMA 6 | Box | Clear Cover, Light Gray | ABS Body, Plastic, Polycarbonate Cover | 150 mm | 3.937 in | 100 mm | 5.906 in | Hinged, Latches, Lockable, Sealing Gasket | 2.756 " | 23.3 in² | 150 cm² | |||||||
Boxco BC-ATP-131508 | UL94 HB | 85 mm | Hinged Door, Stainless Steel Latch | IP66, IP67, NEMA 4X, NEMA 6 | Box | Clear Cover, Light Gray | ABS Body, Plastic, Polycarbonate Cover | 155 mm | 5.315 in | 6.102 in | Hinged, Latches, Lockable, Sealing Gasket | 3.346 in | 32.4 in˛ | 209 cm˛ | 135 mm | |||||||
Boxco BC-ATP-354516 | UL94 HB | 160 mm | Hinged Door, Stainless Steel Latch | IP66, IP67, NEMA 4X, NEMA 6 | Box | Clear Cover, Light Gray | ABS Body, Plastic, Polycarbonate Cover | 450 mm | 13.78 in | 350 mm | 17.717 in | Hinged, Latches, Lockable, Sealing Gasket | 6.299 in | 244 in˛ | 1575 cm˛ | 0.146 in | 3.7 mm | |||||
Boxco BC-ATP-212113 | UL94 HB | 130 mm | Hinged Door, Stainless Steel Latch | IP66, IP67, NEMA 4X, NEMA 6 | Box | Clear Cover, Light Gray | ABS Body, Plastic, Polycarbonate Cover | 210 mm | 8.268 in | 210 mm | 8.268 in | Hinged, Latches, Lockable, Sealing Gasket | 5.118 in | 441 cm˛ | 68.4 in˛ | |||||||
Boxco BC-ATP-131808 | UL94 HB | 85 mm | Hinged Door, Stainless Steel Latch | IP66, IP67, NEMA 4X, NEMA 6 | Box | Clear Cover, Light Gray | ABS Body, Plastic, Polycarbonate Cover | 185 mm | 5.315 in | 135 mm | 7.283 in | Hinged, Latches, Lockable, Sealing Gasket | 3.346 in | 38.7 in˛ | 250 cm˛ | |||||||
Boxco BC-ATP-172211 | UL94 HB | Hinged Door, Stainless Steel Latch | IP66, IP67, NEMA 4X, NEMA 6 | Box | Clear Cover, Light Gray | ABS Body, Plastic, Polycarbonate Cover | 220 mm | 6.693 " | 170 mm | 8.661 in | Hinged, Latches, Lockable, Sealing Gasket | 58 in² | 374 cm² | |||||||||
Boxco BC-ATP-354520 | UL94 HB | Hinged Door, Stainless Steel Latch | IP66, IP67, NEMA 4X, NEMA 6 | Box | Clear Cover, Light Gray | ABS Body, Plastic, Polycarbonate Cover | 450 mm | 13.78 in | 350 mm | 17.717 in | Hinged, Latches, Lockable, Sealing Gasket | 244 in˛ | 1575 cm˛ | 0.146 in | 3.7 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 18.40 | |
Description
General part information
BC-ATP Series
Box Plastic, ABS Body, Polycarbonate Cover Light Gray, Clear Cover Hinged Door, Stainless Steel Latch 5.906" L x 3.937" W (150.00mm x 100.00mm) X 2.756" (70.00mm)
