2M1-SP1-T1-B1-M1QE

Active

Carling Technologies

SWITCH TOGGLE SPDT 5A 125V

Deep-Dive with AI

Search across all available documentation for this part.

2M1-SP1-T1-B1-M1QE

Active

Carling Technologies

SWITCH TOGGLE SPDT 5A 125V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.48
		10	$ 4.73
		25	$ 4.46
		50	$ 4.27
		100	$ 4.08
		250	$ 3.85
		500	$ 3.68
		1000	$ 3.52

Description

General part information

2M1-SP1 Series

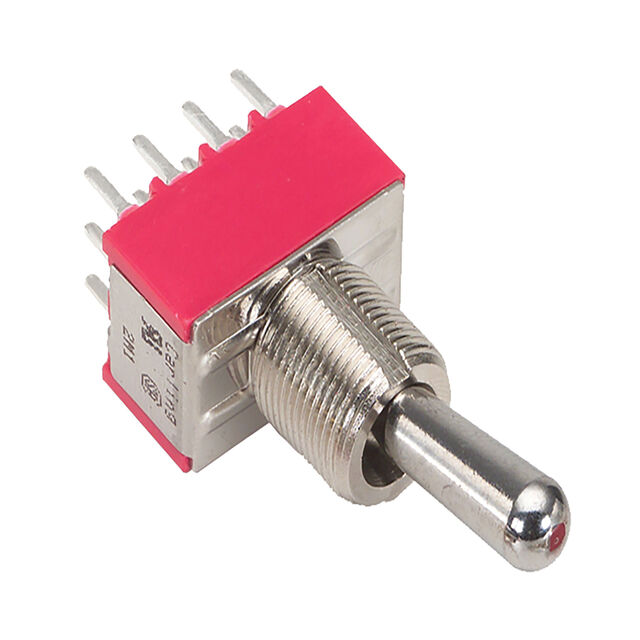

Toggle Switch SPDT Panel Mount

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2M1-SP1-T1-B1-M1QE	2M1-SP1 Series

	-	-
Actuator Length	-	5.4 - 17.5 mm
Actuator Length [z]	10.4 mm	10.4 mm
Actuator Material	Brass, Chrome Plated	Brass, Chrome Plated
Actuator Type	Standard Round	Standard Round, Anti-Rotation, Locking Lever, Flatted
Bushing Thread	1/4-40	Unthreaded, 15/32-32, 1/4-40
Circuit	SPDT	SPDT, SPST
Current Rating (Amps)	5 A	0.4 - 5 VA
Electrical Life	50000 Cycles	50000 Cycles
Features	Epoxy Sealed Terminals	Epoxy Sealed Terminals
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mounting Type	-	Through Hole, Vertical, Right Angle, Panel Mount, Through Hole, Right Angle
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Panel Cutout Dimensions [diameter]	0.25 in	0.25 - 11.91 mm
Switch Function	On-On	On-On
Termination Style	Solder Lug	PC Pin, Solder Lug, Wire Wrap, Quick Connect - 0.062" (1.5mm)
Voltage Rating - AC	125 V	20 - 125 V
Voltage Rating - DC	28 V	20 - 28 V

2M1-SP1 Series

SWITCH TOGGLE SPDT 0.4VA 20V

Part	Electrical Life	Voltage Rating - AC	Actuator Length [z]	Mounting Type	Switch Function	Termination Style	Circuit	Current Rating (Amps)	Voltage Rating - DC	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Illumination	Actuator Material	Bushing Thread	Features	Actuator Length [x]	Ingress Protection	Panel Cutout Dimensions [diameter]
Carling Technologies 2M1-SP1-T1-B4-M7RE	50000 Cycles	20 V	10.4 mm	Right Angle, Through Hole, Vertical	On-On	PC Pin	SPDT	0.4 VA	20 V	Standard Round	-30 ░C	85 °C	Non-Illuminated	Brass, Chrome Plated	Unthreaded	Epoxy Sealed Terminals
Carling Technologies 2M1-SP1-T7-B0-M2GE	50000 Cycles	125 V			On-On	PC Pin	SPDT	5 A	28 V	Anti-Rotation	-30 ░C	85 °C	Non-Illuminated	Brass, Chrome Plated	15/32-32	Epoxy Sealed Terminals	11.7 mm	IP67 - Dust Tight, Waterproof	11.91 mm
Carling Technologies 2M1-SP1-T1-B1-M1GE	50000 Cycles	125 V			On-On	Solder Lug	SPDT	5 A	28 V	Standard Round	-30 ░C	85 °C	Non-Illuminated	Brass, Chrome Plated	1/4-40	Epoxy Sealed Terminals	10.39 mm	IP67 - Dust Tight, Waterproof	0.25 in
Carling Technologies 2M1-SP1-TA-B1-M6RE	50000 Cycles	20 V		Panel Mount, Right Angle	On-On	PC Pin	SPDT	0.4 VA	20 V	Locking Lever	-30 ░C	85 °C	Non-Illuminated	Brass, Chrome Plated	1/4-40	Epoxy Sealed Terminals			0.25 in
Carling Technologies 2M1-SP1-T8-B0-M2QE	50000 Cycles	125 V			On-On	PC Pin	SPDT	5 A	28 V	Anti-Rotation	-30 ░C	85 °C	Non-Illuminated	Brass, Chrome Plated	15/32-32	Epoxy Sealed Terminals	17.5 mm	IP67 - Dust Tight, Waterproof	11.91 mm
Carling Technologies 2M1-SP1-T1-B1-M1QE	50000 Cycles	125 V	10.4 mm		On-On	Solder Lug	SPDT	5 A	28 V	Standard Round	-30 ░C	85 °C	Non-Illuminated	Brass, Chrome Plated	1/4-40	Epoxy Sealed Terminals		IP67 - Dust Tight, Waterproof	0.25 in
