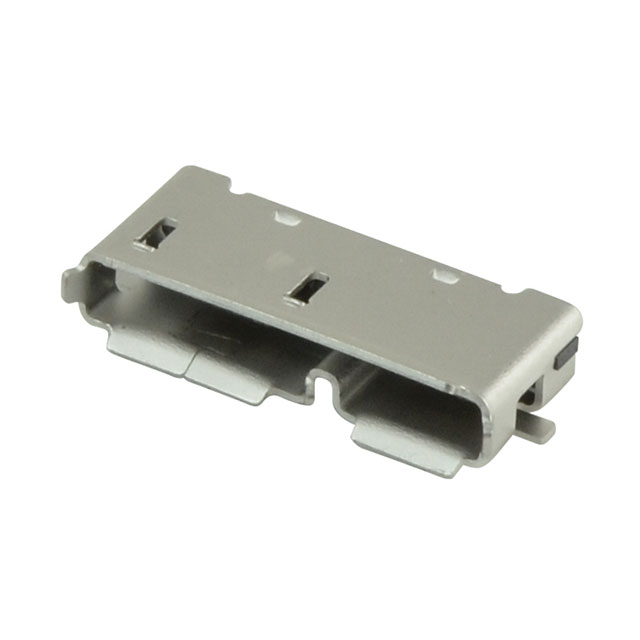

UJ3-MIABH-1-SMT-TR

Active

CUI Devices

CONN RCPT USB3.0 MICRO AB SMD RA

Search across all available documentation for this part.

Active

CUI Devices

CONN RCPT USB3.0 MICRO AB SMD RA

Technical Specifications

Parameters and characteristics for this part

Specification	UJ3-MIABH-1-SMT-TR

Connector Type	USB - micro AB
Contact Finish	Gold
Current Rating (Amps)	1.8 A
Features	Solder Retention
Gender	Receptacle
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mating Cycles	10000
Mounting Feature	Horizontal
Mounting Type	Surface Mount, Right Angle
Number of Contacts	10
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shell/Shielding Material	Brass
Shielding	Shielded
Termination	Solder
Voltage - Rated	30 VAC

Part	Connector Type	Number of Contacts	Mounting Feature	Termination	Shielding	Features	Insulation Color	Operating Temperature [Max]	Operating Temperature [Min]	Gender	Mating Cycles	Number of Ports	Current Rating (Amps)	Mounting Type	Shell/Shielding Material	Voltage - Rated	Material Flammability Rating	Contact Finish
CUI Devices UJ3-MIABH-1-SMT-TR	USB - micro AB	10	Horizontal	Solder	Shielded	Solder Retention	Black	85 °C	-55 °C	Receptacle	10000	1	1.8 A	Surface Mount Right Angle	Brass	30 VAC	UL94 V-0	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.07
	Digi-Reel®	1	$ 2.07
	Tape & Reel (TR)	1600	$ 1.12

General part information

USB - micro AB USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) Receptacle Connector 10 Position Surface Mount, Right Angle
