AL6M-P4P-R

Active

IDEC Corporation

LED PANEL MOUNT INDICATOR, PILOT LIGHT, RED, 24 V, 16 MM, 9 MA, IP65

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AL6M-P4P-R

Active

IDEC Corporation

LED PANEL MOUNT INDICATOR, PILOT LIGHT, RED, 24 V, 16 MM, 9 MA, IP65

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AL6M-P4P-R

Ingress Protection	IP65
Lamp Color	Red
Lens Color	Red
Lens Size [diameter]	18 mm
Panel Cutout Dimensions	0.63 in
Panel Cutout Dimensions	16 mm
Panel Cutout Shape	Round
Ratings	AC/DC
Termination Style	Solder Lug
Type	LED
Voltage	24 V

AL6M-P4 Series

LED PANEL MOUNT INDICATOR, PILOT LIGHT, RED, 24 V, 16 MM, 9 MA, IP65

Part	Lens Size [diameter]	Voltage	Panel Cutout Dimensions	Panel Cutout Dimensions	Lens Color	Ratings	Lamp Color	Ingress Protection	Termination Style	Type	Panel Cutout Shape
IDEC Corporation AL6M-P4P-R	18 mm	24 V	0.63 in	16 mm	Red	AC/DC	Red	IP65	Solder Lug	LED	Round

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.31
		5	$ 14.25
		10	$ 13.44
		25	$ 12.44
		50	$ 11.73
		100	$ 11.05
Newark	Each	1	$ 17.95
		5	$ 17.41
		10	$ 16.52
		25	$ 16.10
		50	$ 15.67
		100	$ 15.26

Description

General part information

AL6M-P4 Series

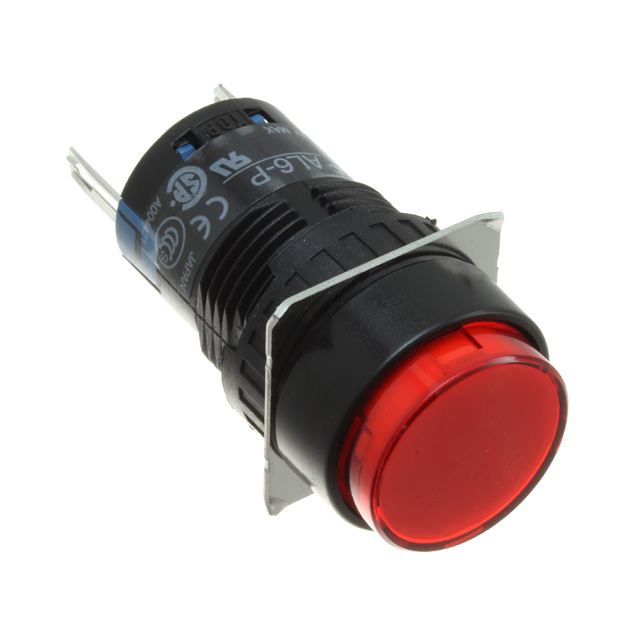

The AL6M-P4P-R is a red panel-mount LED Pilot Light with round lens. LED lamp is included and contains built-in current limiting resistor and reverse polarity protection diode (no external resistor required).
