Description
General part information

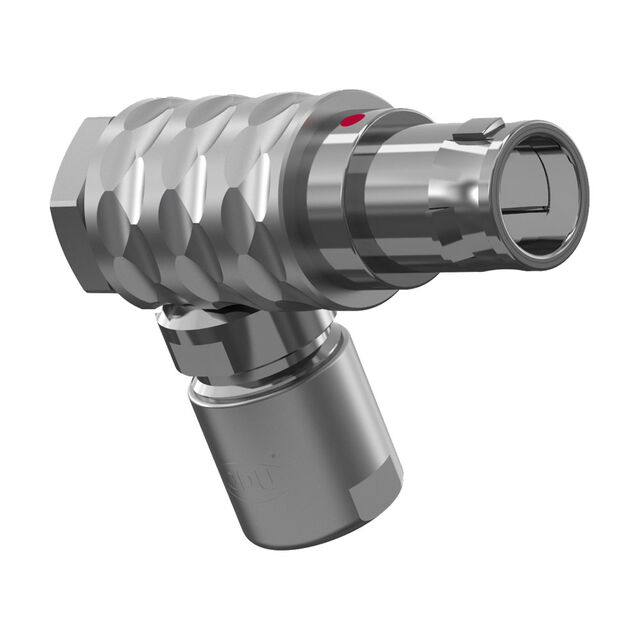

W10L0C-P06MCC0-4200
6 Position Circular Connector Plug, Male Pins Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | W10L0C-P06MCC0-4200 |
|---|---|
| Applications | Testing Equipment & Measurement, Medical, Military, Industrial |
| Backshell Material | Copper Alloy |
| Cable Opening (Max) | 0.165 in |
| Cable Opening (Min) | 0.118 in |
| Color | Silver |
| Connector Type | Male Pins, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating | 4 A |
| Fastening Type | Push-Pull |
| Features | Backshell |
| Ingress Protection Description | Dust Protected |
| Ingress Protection IP Rating | IP50 |
| Insert Material | Polyetheretherketone, PEEK |
| Mounting Type | Right Angle, Free Hanging (In-Line) |
| Number of Positions | 6 |
| Operating Temperature (Max) | 120 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation Angle | 0 ° |
| Plating | Chrome |
| Primary Material | Metal |
| Shell Finish | Chrome |
| Shell Material | Copper Alloy |
| Shell Size - Insert | 0 |
| Shell Size - Insert | 0 |
| Shielding | Unshielded |
| Termination | Solder Cup |
