SSL-LX100133SIC

Active

Lumex Opto/Components Inc.

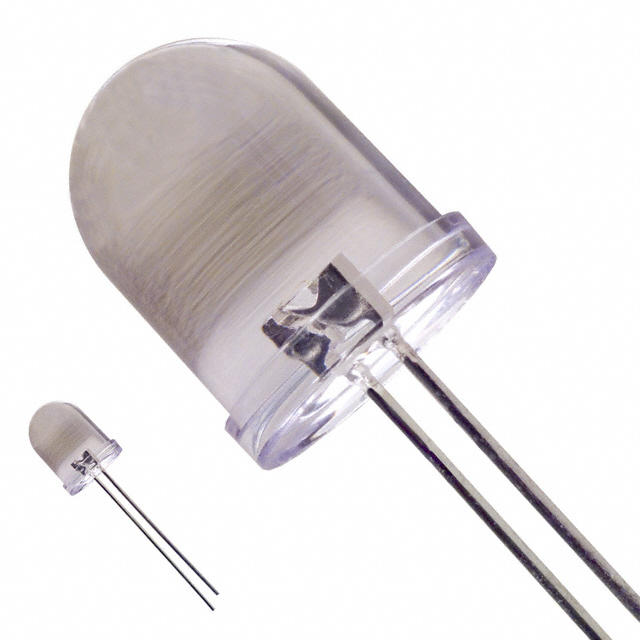

LED RED CLEAR T-10MM T/H

Deep-Dive with AI

Search across all available documentation for this part.

SSL-LX100133SIC

Active

Lumex Opto/Components Inc.

LED RED CLEAR T-10MM T/H

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.66
		10	$ 0.43
		200	$ 0.28
		1000	$ 0.26

Description

General part information

SSL-LX100133 Series

Red LED Indication - Discrete 2V Radial

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SSL-LX100133SIC	SSL-LX100133 Series

Color	Red	Red, Blue, Green, Amber
Configuration	Standard	Standard, Independent
Current - Test	20 mA	20 mA
Height (Max) [Max]	13.5 mm	13.5 mm
Lens Color	Colorless	Red, Colorless, Blue, Green
Lens Size [diameter]	10 mm	10 mm
Lens Style	Round with Domed Top	Round with Domed Top
Lens Transparency	Clear	Diffused, Clear
Millicandela Rating	-	40 - 800 mcd
Mounting Type	Through Hole	Through Hole
Package / Case	Radial	Radial
Supplier Device Package	T-10mm	T-10mm
Viewing Angle	30 °	15 - 60 °
Voltage - Forward (Vf) (Typ)	2 V	1.7 - 3.6 V
Wavelength - Peak	636 nm	565 - 660 nm

SSL-LX100133 Series

LED RED DIFFUSED T-10MM T/H

Part	Wavelength - Peak	Lens Color	Configuration	Package / Case	Millicandela Rating	Lens Size [diameter]	Height (Max) [Max]	Voltage - Forward (Vf) (Typ)	Current - Test	Lens Style	Mounting Type	Color	Viewing Angle	Supplier Device Package	Lens Transparency
Lumex Opto/Components Inc. SSL-LX100133SRD/G	660 nm	Red	Standard	Radial	725 mcd	10 mm	13.5 mm	1.7 V	20 mA	Round with Domed Top	Through Hole	Red	60 °	T-10mm	Diffused
Lumex Opto/Components Inc. SSL-LX100133USBC		Colorless	Standard	Radial	800 mcd	10 mm	13.5 mm	3.6 V	20 mA	Round with Domed Top	Through Hole	Blue	15 °	T-10mm	Clear
Lumex Opto/Components Inc. SSL-LX100133SIC	636 nm	Colorless	Standard	Radial		10 mm	13.5 mm	2 V	20 mA	Round with Domed Top	Through Hole	Red	30 °	T-10mm	Clear
Lumex Opto/Components Inc. SSL-LX100133ID	635 nm	Red	Standard	Radial	40 mcd	10 mm	13.5 mm	2 V	20 mA	Round with Domed Top	Through Hole	Red	60 °	T-10mm	Diffused
Lumex Opto/Components Inc. SSL-LX100133SGC	565 nm	Colorless	Standard	Radial	120 mcd	10 mm	13.5 mm	2.2 V	20 mA	Round with Domed Top	Through Hole	Green	30 °	T-10mm	Clear
Lumex Opto/Components Inc. SSL-LX100133USBD		Blue	Standard	Radial	300 mcd	10 mm	13.5 mm	3.6 V	20 mA	Round with Domed Top	Through Hole	Blue	60 °	T-10mm	Diffused
Lumex Opto/Components Inc. SSL-LX100133SRD/D	660 nm	Red	Independent	Radial	400 mcd	10 mm	13.5 mm	1.7 V	20 mA	Round with Domed Top	Through Hole	Red	60 °	T-10mm	Diffused
Lumex Opto/Components Inc. SSL-LX100133AC	605 nm	Colorless	Standard	Radial	110 mcd	10 mm	13.5 mm	2.1 V	20 mA	Round with Domed Top	Through Hole	Amber	20 °	T-10mm	Clear
Lumex Opto/Components Inc. SSL-LX100133SRD	660 nm	Red	Standard	Radial	550 mcd	10 mm	13.5 mm	1.7 V	20 mA	Round with Domed Top	Through Hole	Red	60 °	T-10mm	Diffused
Lumex Opto/Components Inc. SSL-LX100133SGD	565 nm	Green	Standard	Radial	45 mcd	10 mm	13.5 mm	2.2 V	20 mA	Round with Domed Top	Through Hole	Green	60 °	T-10mm	Diffused
