H7PSH-1510M
ActiveAssmann WSW Components
CBL D-SUB- HHMM15H/AE15M/HFM15H
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
H7PSH-1510M
ActiveAssmann WSW Components
CBL D-SUB- HHMM15H/AE15M/HFM15H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | H7PSH-1510M |
|---|---|
| 1st Connector | Receptacle, Female Sockets |
| 2nd Connector | Plug, Male Pins |
| Color | Ribbon, Multiple |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Length | 10 ft |
| Length | 3.05 m |
| Number of Positions | 15 |
| Shielding | Unshielded |
| Type | DB15 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.09 | |
| 10 | $ 10.72 | |||
| 25 | $ 10.30 | |||
| 50 | $ 9.89 | |||
| 100 | $ 9.34 | |||
| 250 | $ 8.52 | |||
| 500 | $ 7.97 | |||
| 1000 | $ 7.31 | |||
Description
General part information
H7PSH-15 Series

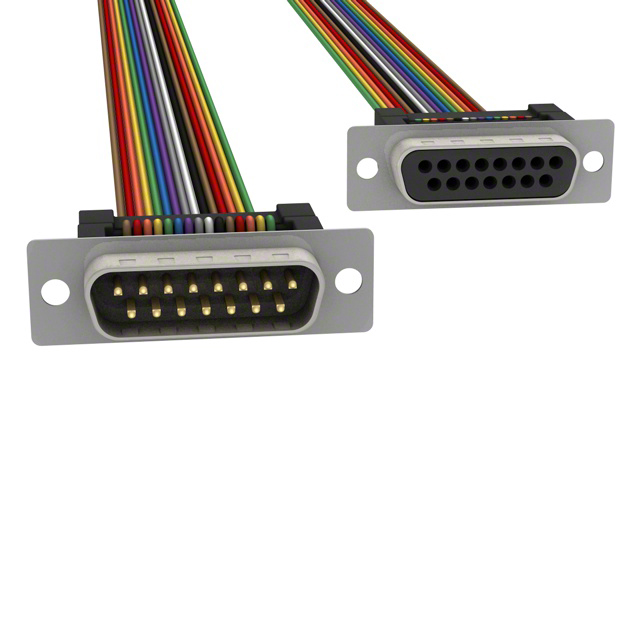

D-Sub Cable Assembly DB15 Multiple, Ribbon 10.00' (3.05m) Receptacle, Female Sockets to Plug, Male Pins Unshielded
