A1-P21-1-B

Active

Switch Components

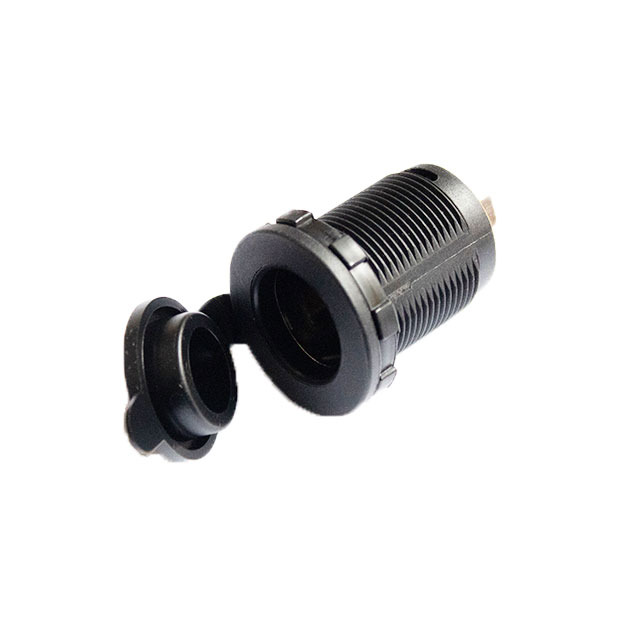

AUTO PWR SCKT 12V 20A W/LED BLK

Search across all available documentation for this part.

Active

Switch Components

AUTO PWR SCKT 12V 20A W/LED BLK

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A1-P21-1-B	A1-P21 Series

Approval Agency	-	UL
Battery Chemistry	-	Mobile Devices
Charge Current - Max	-	2.1 A
Color	Black	Black
Current Rating (Amps)	20 A	20 A
Number of Cells	-	2
Operating Temperature	-	60 °C
Operating Temperature	-	0 °C
Size / Dimension	-	4.13 in
Size / Dimension	-	104.9 mm
Size / Dimension	-	51.1 mm
Size / Dimension	-	2.01 in
Size / Dimension	-	1.77 "
Size / Dimension	-	45 mm
Specifications	Nylon, LED Indicator	Nylon, LED Indicator
Termination Style	-	USB A Receptacle
Type	Auto Power Socket	USB, Socket In-Vehicle, Auto Power Socket
Voltage - Input	-	12 V
Voltage - Input	-	24 V
Voltage - Nominal	-	5 V
Voltage - Rated	12 VDC	12 VDC

BATT CHG USB/SKT IN-VEH 5V 2.1A

Part	Approval Agency	Voltage - Input [Min]	Voltage - Input [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Number of Cells	Voltage - Nominal	Type	Battery Chemistry	Termination Style	Charge Current - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Color	Current Rating (Amps)	Voltage - Rated	Specifications
Switch Components A1-P21USB2-1-B-PD	UL	12 V	24 V	4.13 in	104.9 mm	51.1 mm	2.01 in	1.77 "	45 mm	2	5 V	USB, Socket In-Vehicle	Mobile Devices	USB A Receptacle	2.1 A	60 °C	0 °C
Switch Components A1-P21-1-B												Auto Power Socket						Black	20 A	12 VDC	LED Indicator, Nylon

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Auto Power Socket Cigarette Lighter Assembly 12 V 20 A LED Indicator, Nylon Black
