9844 060500

Active

Belden Inc.

MULTI-PAIR 8CON 24AWG CHROM

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 8CON 24AWG CHROM

Technical Specifications

Parameters and characteristics for this part

Specification	9844 060500

Cable Type	Multi-Pair
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	9.91 mm
Jacket (Insulation) Diameter [diameter]	0.39 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Chrome
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	8
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 2919
Shield Coverage	90 %, 100 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Computer
Voltage	300 V
Wire Gauge	24 AWG

Part	Voltage	Conductor Insulation	Shield Coverage	Cable Type	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Material	Usage	Shield Type	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Wire Gauge	Conductor Material	Features	Length [x]	Length [x]	Jacket Color	Ratings
Belden Inc. 9844 060500	300 V	Polyethylene (PE)	90 % 100 %	Multi-Pair	-30 ░C	80 C	0.889 mm	0.035 in	9.91 mm	0.39 in	Aluminum Copper Tinned	Computer	Braid Foil	Poly-Vinyl Chloride (PVC)	32 AWG	7	8	24 AWG	Copper Tinned	Drain Wire	500 '	152.4 m	Chrome	UL Style 2919

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 7.06

General part information

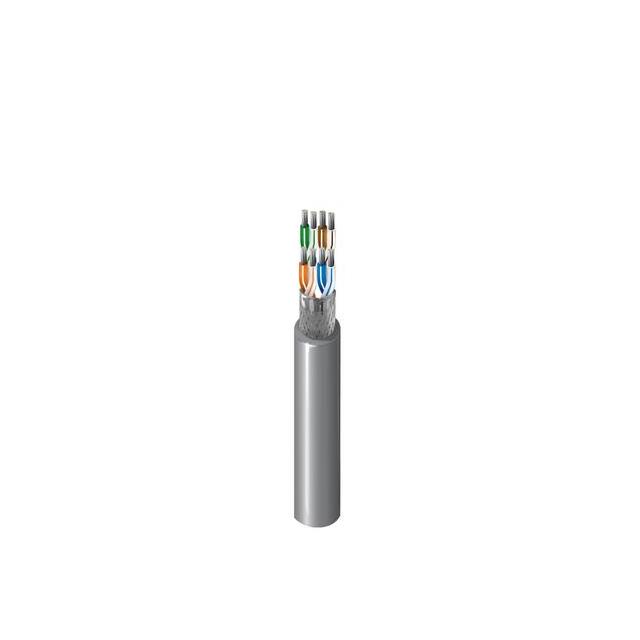

8 (4 Pair Twisted) Conductor Multi-Pair Cable Chrome 24 AWG Foil, Braid 500.0' (152.4m)
