D01-9901401

Active

Harwin Inc.

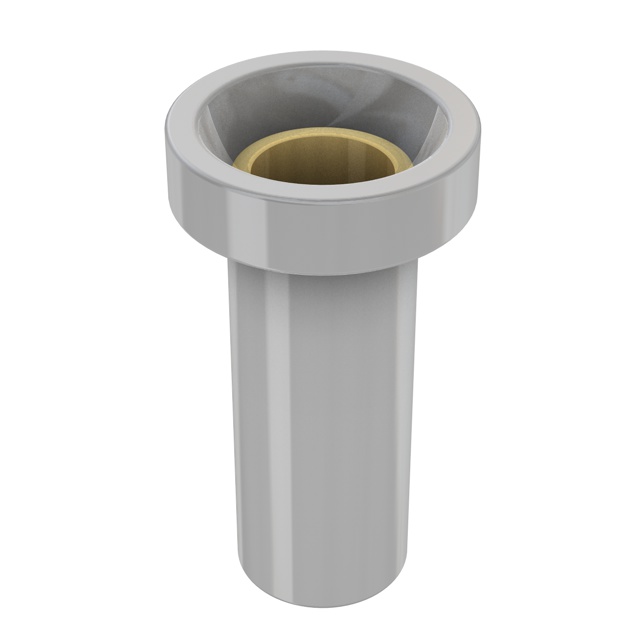

SUB-MIN SKT/CARRIER ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Sub Miniature Sockets Spec Sheet

D01-9901401

Active

Harwin Inc.

SUB-MIN SKT/CARRIER ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet Sub Miniature Sockets Spec Sheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 4.37
		10	$ 3.97
		35	$ 3.76
		70	$ 3.67
		105	$ 3.50
		280	$ 3.06
		525	$ 2.97
		1015	$ 2.54
		2520	$ 2.36
Newark	Each	1000	$ 3.21
		2500	$ 2.89

Description

General part information

D01-990 Series

Pin Receptacle Connector 0.016" ~ 0.020" (0.41mm ~ 0.51mm) No Tail Solder

Documents

Technical documentation and resources

Datasheet

Sub Miniature Sockets Spec Sheet

Datasheet

Specification	D01-9901401	D01-990 Series

Contact Finish	Gold	Gold
Contact Material	Beryllium Copper	Beryllium Copper
Features	Strip of 14	Strip of 10, Strip of 9, Strip of 23, Strip of 6, Strip of 8, Strip of 20, Strip of 5, Strip of 4, Strip of 24, Strip of 32, Strip of 7, Strip of 14, Strip of 15, Strip of 17, Strip of 12, Strip of 3
Flange Diameter [diameter]	1.45 mm	1.45 mm
Flange Diameter [diameter]	0.057 in	0.057 in
Insertion Force [Max]	6 N	6 N
Insertion Force [Min]	2 N	2 N
Length - Overall [x]	0.142 in	0.142 in
Length - Overall [x]	3.61 mm	3.61 mm
Mounting Hole Diameter [Max] [diameter]	1.09 mm	1.09 mm
Mounting Hole Diameter [Max] [diameter]	0.043 in	0.043 in
Mounting Hole Diameter [Min] [diameter]	0.039 in	0.039 in
Mounting Hole Diameter [Min] [diameter]	0.99 mm	0.99 mm
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-55 °C	-55 °C
Socket Depth [z]	3.15 mm	3.15 mm
Socket Depth [z]	0.124 "	0.124 "
Tail Type	No Tail	No Tail
Termination	Solder	Solder

Part	Termination	Contact Material	Mounting Hole Diameter [Min] [diameter]	Mounting Hole Diameter [Min] [diameter]	Mounting Hole Diameter [Max] [diameter]	Mounting Hole Diameter [Max] [diameter]	Flange Diameter [diameter]	Flange Diameter [diameter]	Insertion Force [Min]	Insertion Force [Max]	Socket Depth [z]	Socket Depth [z]	Operating Temperature [Max]	Operating Temperature [Min]	Length - Overall [x]	Length - Overall [x]	Tail Type	Features	Contact Finish
Harwin Inc. D01-9901001	Solder	Beryllium Copper	0.039 in	0.99 mm	1.09 mm	0.043 in	1.45 mm	0.057 in	2 N	6 N	3.15 mm	0.124 "	100 °C	-55 °C	0.142 in	3.61 mm	No Tail	Strip of 10	Gold
Harwin Inc. D01-9900901	Solder	Beryllium Copper	0.039 in	0.99 mm	1.09 mm	0.043 in	1.45 mm	0.057 in	2 N	6 N	3.15 mm	0.124 "	100 °C	-55 °C	0.142 in	3.61 mm	No Tail	Strip of 9	Gold
Harwin Inc. D01-9902301	Solder	Beryllium Copper	0.039 in	0.99 mm	1.09 mm	0.043 in	1.45 mm	0.057 in	2 N	6 N	3.15 mm	0.124 "	100 °C	-55 °C	0.142 in	3.61 mm	No Tail	Strip of 23	Gold
Harwin Inc. D01-9900601	Solder	Beryllium Copper	0.039 in	0.99 mm	1.09 mm	0.043 in	1.45 mm	0.057 in	2 N	6 N	3.15 mm	0.124 "	100 °C	-55 °C	0.142 in	3.61 mm	No Tail	Strip of 6	Gold
Harwin Inc. D01-9900805	Solder	Beryllium Copper	0.039 in	0.99 mm	1.09 mm	0.043 in	1.45 mm	0.057 in	2 N	6 N	3.15 mm	0.124 "	100 °C	-55 °C	0.142 in	3.61 mm	No Tail	Strip of 8	Gold
Harwin Inc. D01-9902001	Solder	Beryllium Copper	0.039 in	0.99 mm	1.09 mm	0.043 in	1.45 mm	0.057 in	2 N	6 N	3.15 mm	0.124 "	100 °C	-55 °C	0.142 in	3.61 mm	No Tail	Strip of 20	Gold
Harwin Inc. D01-9900505	Solder	Beryllium Copper	0.039 in	0.99 mm	1.09 mm	0.043 in	1.45 mm	0.057 in	2 N	6 N	3.15 mm	0.124 "	100 °C	-55 °C	0.142 in	3.61 mm	No Tail	Strip of 5	Gold
Harwin Inc. D01-9900401	Solder	Beryllium Copper	0.039 in	0.99 mm	1.09 mm	0.043 in	1.45 mm	0.057 in	2 N	6 N	3.15 mm	0.124 "	100 °C	-55 °C	0.142 in	3.61 mm	No Tail	Strip of 4	Gold
Harwin Inc. D01-9902005	Solder	Beryllium Copper	0.039 in	0.99 mm	1.09 mm	0.043 in	1.45 mm	0.057 in	2 N	6 N	3.15 mm	0.124 "	100 °C	-55 °C	0.142 in	3.61 mm	No Tail	Strip of 20	Gold
Harwin Inc. D01-9901301	Solder	Beryllium Copper	0.039 in	0.99 mm	1.09 mm	0.043 in	1.45 mm	0.057 in	2 N	6 N	3.15 mm	0.124 "	100 °C	-55 °C	0.142 in	3.61 mm	No Tail		Gold
