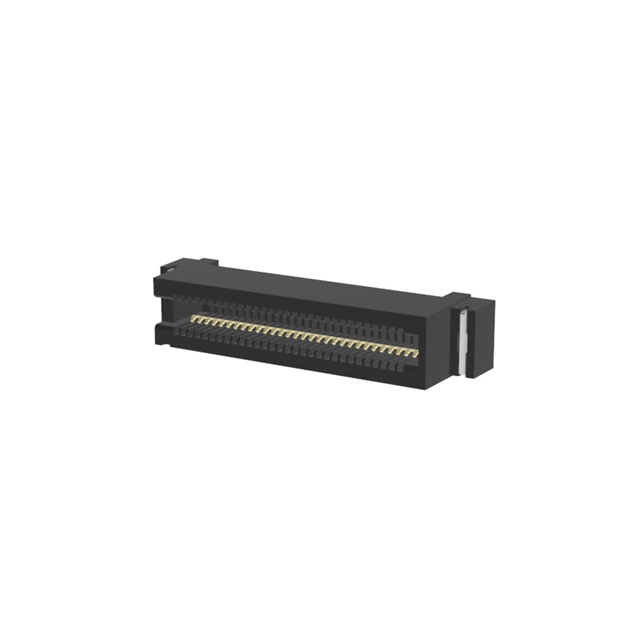

MBB-VM-30-93-30-ST

Obsolete

CarlisleIT

CONN EDGE DUAL FMALE 60POS 0.031

Search across all available documentation for this part.

Obsolete

CarlisleIT

CONN EDGE DUAL FMALE 60POS 0.031

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MBB-VM-30-93-30-ST	MBB-VM-30 Series

Card Thickness	0.093 in	0.062 - 0.093 in
Card Thickness	2.36 mm	1.57 - 2.36 mm
Card Type	Non Specified - Dual Edge	Non Specified - Dual Edge
Color	Black	Black
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Contact Type	Cantilever	Cantilever
Features	Board Guide	Solder Retention, Board Guide
Gender	Female	Female
Mounting Type	Surface Mount	Surface Mount
Number of Positions	60	60
Number of Rows	2	2
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch [x]	0.8 mm	0.8 mm
Pitch [x]	0.031 in	0.031 in
Read Out	Dual	Dual
Termination	Solder	Solder

CONN EDGE DUAL FMALE 60POS 0.031

Part	Contact Type	Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Features	Read Out	Number of Rows	Gender	Number of Positions	Card Thickness	Card Thickness	Mounting Type	Termination	Contact Finish	Card Type	Pitch [x]	Pitch [x]
CarlisleIT MBB-VM-30-62-30-ST	Cantilever	Black	-55 °C	125 °C	0.76 Ám	30 Áin	Board Guide, Solder Retention	Dual	2	Female	60	0.062 in	1.57 mm	Surface Mount	Solder	Gold	Non Specified - Dual Edge	0.8 mm	0.031 in
CarlisleIT MBB-VM-30-93-30-ST	Cantilever	Black	-55 °C	125 °C	0.76 Ám	30 Áin	Board Guide	Dual	2	Female	60	0.093 in	2.36 mm	Surface Mount	Solder	Gold	Non Specified - Dual Edge	0.8 mm	0.031 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 9.31

General part information

60 Position Female Connector Non Specified - Dual Edge Gold 0.031" (0.80mm) Black

Technical documentation and resources

No documents available
