2004-7511-000

Active

Radiall USA, Inc.

SMB M STR BHD SP

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMB M STR BHD SP

Technical Specifications

Parameters and characteristics for this part

Specification	2004-7511-000

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Male Pin, Jack
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

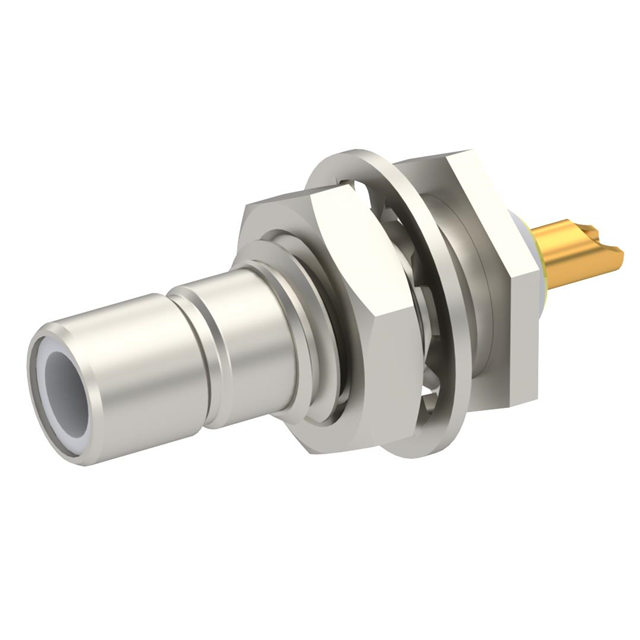

SMB M STR BHD SP

Part	Frequency - Max [Max]	Includes	Body Finish	Mating Cycles	Dielectric Material	Fastening Type	Number of Ports	Center Contact Material	Center Contact Plating	Mounting Feature	Impedance	Connector Type	Connector Style	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Shield Termination	Housing Color	Body Material
Radiall USA, Inc. 2004-7511-000	4 GHz	1 Connector, 1 Lockwasher, 1 Nut	Nickel	500	Polytetrafluoroethylene (PTFE)	Snap-On	1	Beryllium Copper	Gold	Bulkhead - Front Side Nut	50 Ohms	Jack, Male Pin	SMB	Solder Cup	-65 ░C	165 °C	Solder	Silver	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMB Connector Jack, Male Pin 50 Ohms Panel Mount Solder Cup
