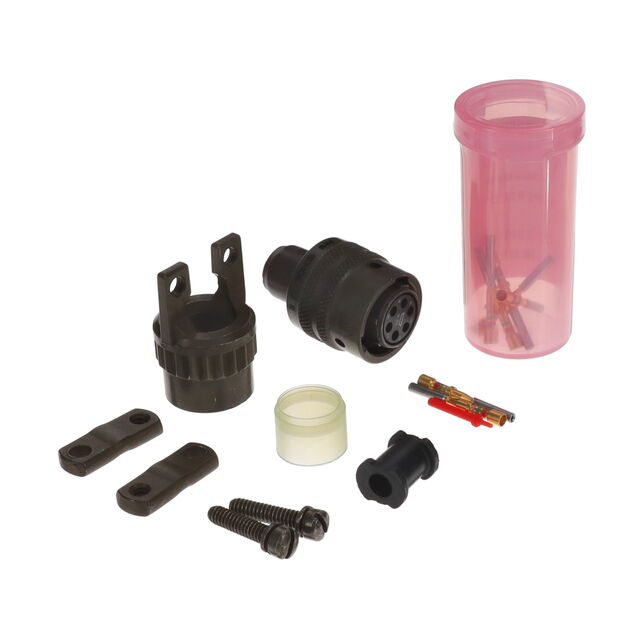

MS3126F10-6S
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB PLUG
Deep-Dive with AI
Search across all available documentation for this part.
MS3126F10-6S
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB PLUG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3126F10-6S | MS3126F10 Series |
|---|---|---|
| - | - | |
| Applications | Military, Mass Transit, Instrumentation, Aerospace, Industrial | Military, Mass Transit, Instrumentation, Aerospace, Industrial |
| Color | Olive Drab | Olive Drab |
| Connector Type | Female Sockets, Plug | Female Sockets, Plug |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 7.5 A | 7.5 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Strain Relief, Coupling Nut | Strain Relief, Coupling Nut |
| Grade | Military | Military |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 6 | 6 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum | Aluminum |
| Shell Size - Insert | 10-6 | 10-6 |
| Shielding | Unshielded | Unshielded |
| Termination | Crimp | Crimp |
| Voltage Rating | 600 VAC | 600 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 77.18 | |
| 10 | $ 70.82 | |||
| 25 | $ 68.10 | |||
| 50 | $ 65.83 | |||
| 100 | $ 62.20 | |||
MS3126F10 Series
PLUG
| Part | Voltage Rating | Ingress Protection | Termination | Connector Type | Applications | Insert Material | Orientation | Operating Temperature [Min] | Operating Temperature [Max] | Shell Material | Number of Positions | Shell Finish | Qualification | Features | Fastening Type | Grade | Mounting Type | Color | Contact Finish - Mating | Shielding | Primary Material | Current Rating (Amps) | Shell Size - Insert | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3126F10-6SW(LC) | ||||||||||||||||||||||||
Amphenol Industrial Operations MS3126F10-6S | 600 VAC | Environment Resistant | Crimp | Female Sockets, Plug | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | N | -55 °C | 125 °C | Aluminum | 6 | Olive Drab Chromate over Cadmium | MIL-DTL-26482 Series I | Coupling Nut, Strain Relief | Bayonet Lock | Military | Free Hanging (In-Line) | Olive Drab | Gold | Unshielded | Metal | 7.5 A | 10-6 | Copper Alloy |
Description
General part information
MS3126F10 Series
6 Position Circular Connector Plug, Female Sockets Crimp
