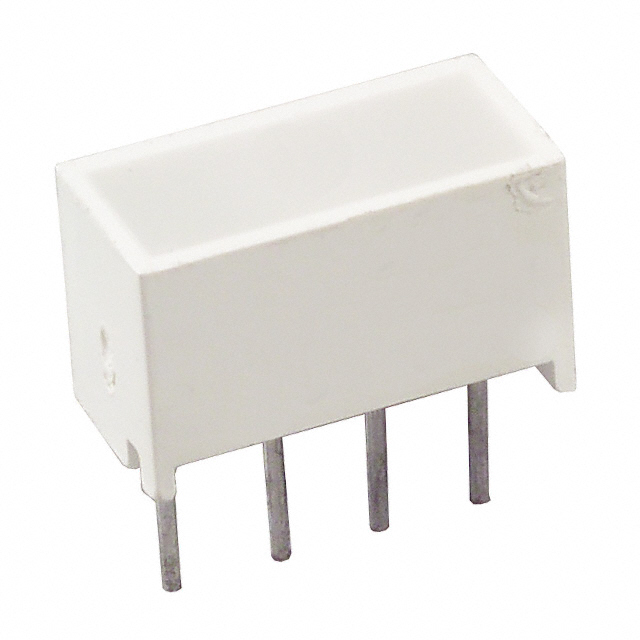

SSB-LX2500SGW

Active

Lumex Opto/Components Inc.

LED LT BAR 5X10MM 2CHIP GRN DIFF

Deep-Dive with AI

Search across all available documentation for this part.

SSB-LX2500SGW

Active

Lumex Opto/Components Inc.

LED LT BAR 5X10MM 2CHIP GRN DIFF

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SSB-LX2500SGW

Color	Green
Configuration	Bar - Single, SIP
Current	25 mA
Lens Size [x]	10 mm
Lens Size [y]	5 mm
Lens Style	Rectangle with Flat Top
Lens Type	Diffused, White
Millicandela Rating	25 mcd
Mounting Type	Through Hole
Viewing Angle	160 °
Wavelength - Peak	565 nm

SSB-LX2500 Series

LED LT BAR 5X10MM 2CHIP GRN DIFF

Part	Millicandela Rating	Mounting Type	Wavelength - Peak	Lens Type	Current	Color	Lens Size [y]	Lens Size [x]	Configuration	Viewing Angle	Lens Style
Lumex Opto/Components Inc. SSB-LX2500SGW	25 mcd	Through Hole	565 nm	Diffused, White	25 mA	Green	5 mm	10 mm	Bar - Single, SIP	160 °	Rectangle with Flat Top

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.98
		10	$ 1.32
		100	$ 1.02
		1000	$ 0.79
		5000	$ 0.73
		10000	$ 0.72

Description

General part information

SSB-LX2500 Series

LED Circuit Board Indicator LED Circuit Board Indicator Bar - Single, SIP Green Diffused, White 2.2V 25mA Rectangle with Flat Top 10.00mm x 5.00mm Through Hole

Documents

Technical documentation and resources

No documents available
