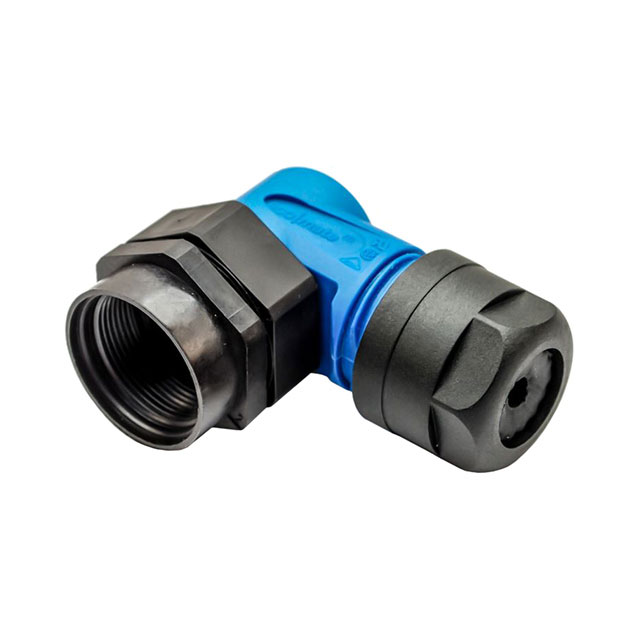

C016 G09 042 G10 X

Active

Amphenol Tuchel Industrial

CONN BACKSHELL W/CLMP BLUE

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN BACKSHELL W/CLMP BLUE

Technical Specifications

Parameters and characteristics for this part

Specification	C016 G09 042 G10 X

Cable Exit	90 °
Cable Opening [Max] [custom]	12.5 mm
Cable Opening [Max] [custom]	0.492 in
Cable Opening [Min] [custom]	6 mm
Cable Opening [Min] [custom]	0.236 in
Color	Blue
Features	Clamping Ring, Gasket
For Use With/Related Products	C016 Series Connectors
Includes	1 Backshell, 1 Clamping Ring, 1 Cable Nut, 2 Gaskets
Ingress Protection	IP67, IP65
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Shielding	Unshielded
Type	Backshell, Cable Clamp

CONN BACKSHELL W/CLMP BLUE

Part	Shielding	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Material	Includes	Cable Exit	Type	Ingress Protection	Material Flammability Rating	For Use With/Related Products	Color	Features
Amphenol Tuchel Industrial C016 G09 042 G10 X	Unshielded	6 mm	12.5 mm	0.236 in	0.492 in	Polyamide (PA66), Nylon 6/6	1 Backshell, 1 Cable Nut, 1 Clamping Ring, 2 Gaskets	90 °	Backshell, Cable Clamp	IP65, IP67	UL94 V-0	C016 Series Connectors	Blue	Clamping Ring, Gasket

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20	$ 60.53

General part information

Blue Connector Backshell, Cable Clamp
