88189-8

Active

TE Connectivity AMP Connectors

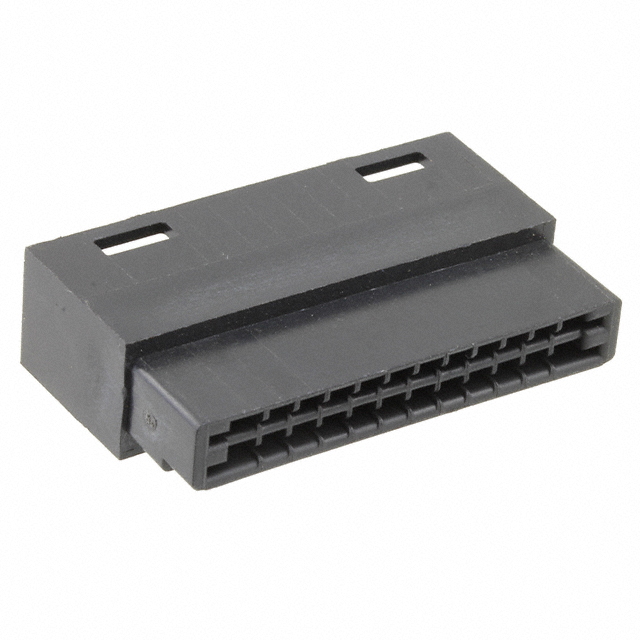

CONN FFC PIN HSG 24POS 2.54MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN FFC PIN HSG 24POS 2.54MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	88189-8	88189 Series

Connector Type	Housing for Male Contacts	Housing for Male Contacts
Current Rating (Amps)	1.5 A	1.5 A
Features	Positions Stamped	Positions Stamped
FFC, FCB Thickness	0.015 mm	0.015 mm
Flat Flex Type	FFC, Discrete Wire	FFC, Discrete Wire
Housing Color	Black	Black
Housing Material	Polyamide (PA), Nylon, Glass Filled	Polyamide (PA), Nylon, Glass Filled
Insulation Diameter [Max]	1.75 mm	1.75 mm
Insulation Diameter [Max]	0.069 in	0.069 in
Insulation Diameter [Min]	0.061 in	0.061 in
Insulation Diameter [Min]	1.55 mm	1.55 mm
Locking Feature	Detent Lock	Detent Lock
Material Flammability Rating	UL94 V-0	UL94 V-0
Note	Contacts Not Included	Contacts Not Included
Number of Positions	24	6 - 26
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in
Voltage Rating	300 VDC	300 VDC
Wire Gauge [Max]	24 AWG	24 AWG
Wire Gauge [Min]	22 AWG	22 AWG

CONN FFC PIN HSG 24POS 2.54MM

Part	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Current Rating (Amps)	Material Flammability Rating	Number of Rows	FFC, FCB Thickness	Housing Color	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Min]	Insulation Diameter [Max]	Note	Number of Positions	Housing Material	Wire Gauge [Max]	Wire Gauge [Min]	Pitch [x]	Pitch [x]	Locking Feature	Flat Flex Type	Voltage Rating	Features
TE Connectivity AMP Connectors 88189-8	-65 ░C	105 ░C	Housing for Male Contacts	1.5 A	UL94 V-0	2	0.015 mm	Black	1.75 mm	0.061 in	1.55 mm	0.069 in	Contacts Not Included	24	Polyamide (PA), Nylon, Glass Filled	24 AWG	22 AWG	2.54 mm	0.1 in	Detent Lock	FFC, Discrete Wire	300 VDC	Positions Stamped
TE Connectivity AMP Connectors 1-88189-0	-65 ░C	105 ░C	Housing for Male Contacts	1.5 A	UL94 V-0	2	0.015 mm	Black	1.75 mm	0.061 in	1.55 mm	0.069 in	Contacts Not Included	26	Polyamide (PA), Nylon, Glass Filled	24 AWG	22 AWG	2.54 mm	0.1 in	Detent Lock	FFC, Discrete Wire	300 VDC	Positions Stamped
TE Connectivity AMP Connectors 3-88189-2	-65 ░C	105 ░C	Housing for Male Contacts	1.5 A	UL94 V-0	2	0.015 mm	Black	1.75 mm	0.061 in	1.55 mm	0.069 in	Contacts Not Included	6	Polyamide (PA), Nylon, Glass Filled	24 AWG	22 AWG	2.54 mm	0.1 in	Detent Lock	FFC, Discrete Wire	300 VDC	Positions Stamped

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 2.16

General part information

Housing FFC, Discrete Wire Housing for Male Contacts Connector Detent Lock 24Pos 0.100" (2.54mm)
