CDBD2020-HF

Active

Comchip Technology

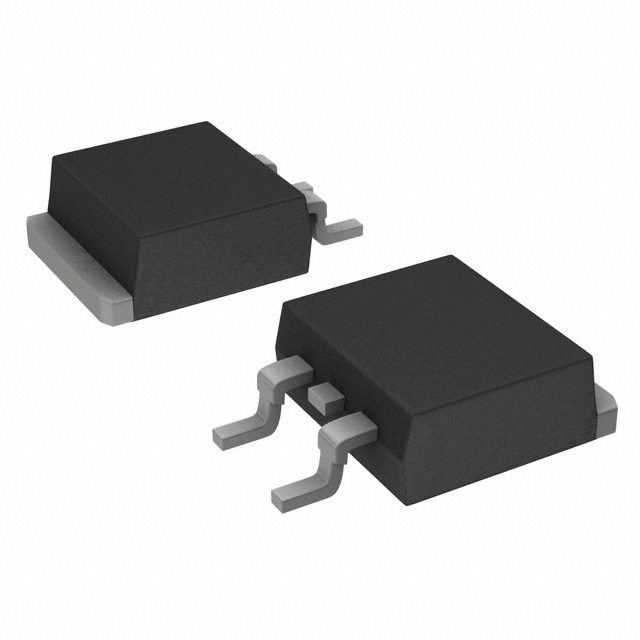

DIODE ARR SCHOTT 20V 20A D2PAK

Search across all available documentation for this part.

Active

Comchip Technology

DIODE ARR SCHOTT 20V 20A D2PAK

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode Array 1 Pair Common Cathode 20 V 20A (DC) Surface Mount TO-263-3, D2PAK (2 Leads + Tab), TO-263AB

Technical documentation and resources

No documents available

Specification	CDBD2020-HF	CDBD2020 Series

Current - Average Rectified (Io) (per Diode)	20 A	20 A
Current - Reverse Leakage @ Vr	500 µA	500 µA
Diode Configuration	1 Pair Common Cathode	1 Pair Common Cathode
Mounting Type	Surface Mount	Surface Mount
Operating Temperature - Junction [Max]	125 °C	125 °C
Operating Temperature - Junction [Min]	-55 °C	-55 °C
Package / Case	D2PAK (2 Leads + Tab), TO-263AB, TO-263-3	D2PAK (2 Leads + Tab), TO-263AB, TO-263-3
Speed	200 mA, 500 ns	200 - 500 mA
Supplier Device Package	D2PAK	D2PAK
Technology	Schottky	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	20 V	20 V
Voltage - Forward (Vf) (Max) @ If	550 mV	550 mV

Part	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Current - Reverse Leakage @ Vr	Voltage - DC Reverse (Vr) (Max) [Max]	Technology	Supplier Device Package	Package / Case	Voltage - Forward (Vf) (Max) @ If	Diode Configuration	Mounting Type	Speed	Current - Average Rectified (Io) (per Diode)
Comchip Technology CDBD2020-G	-55 °C	125 °C	500 µA	20 V	Schottky	D2PAK	D2PAK (2 Leads + Tab), TO-263-3, TO-263AB	550 mV	1 Pair Common Cathode	Surface Mount	200 mA, 500 ns	20 A
Comchip Technology CDBD2020-HF	-55 °C	125 °C	500 µA	20 V	Schottky	D2PAK	D2PAK (2 Leads + Tab), TO-263-3, TO-263AB	550 mV	1 Pair Common Cathode	Surface Mount	200 mA, 500 ns	20 A
