FMHR0079-200CM
ActiveFairview Microwave
CBL ASSY SMAPLUG-SMAPLUG 78.7402
FMHR0079-200CM
ActiveFairview Microwave
CBL ASSY SMAPLUG-SMAPLUG 78.7402
Description
General part information
FMHR0079-200CM

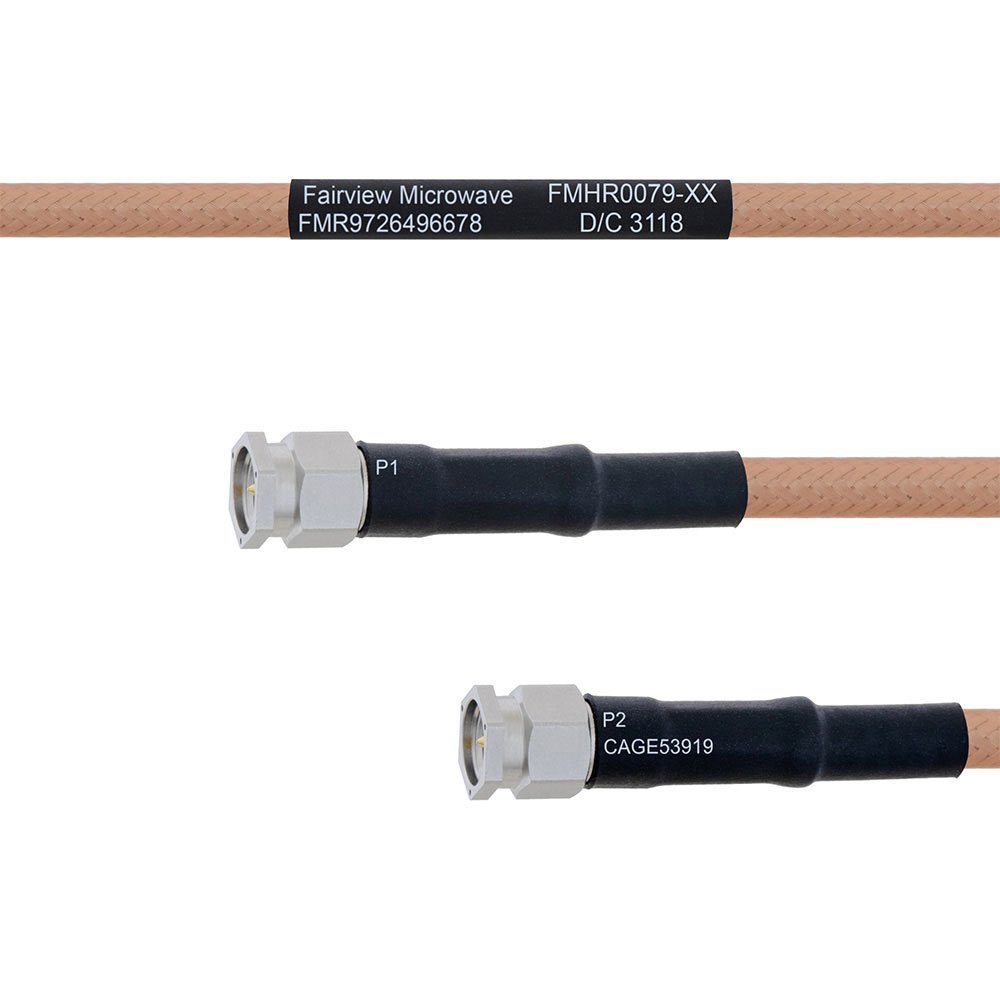

Cable Assembly Coaxial
Technical Specifications
Parameters and characteristics for this part
| Specification | FMHR0079-200CM |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | SMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG |
| Cable Type Size | 400 |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 12.4 GHz |
| Length (ft) | 6.6 ft |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
