MKS4U041009FD4KSSD

Active

WIMA

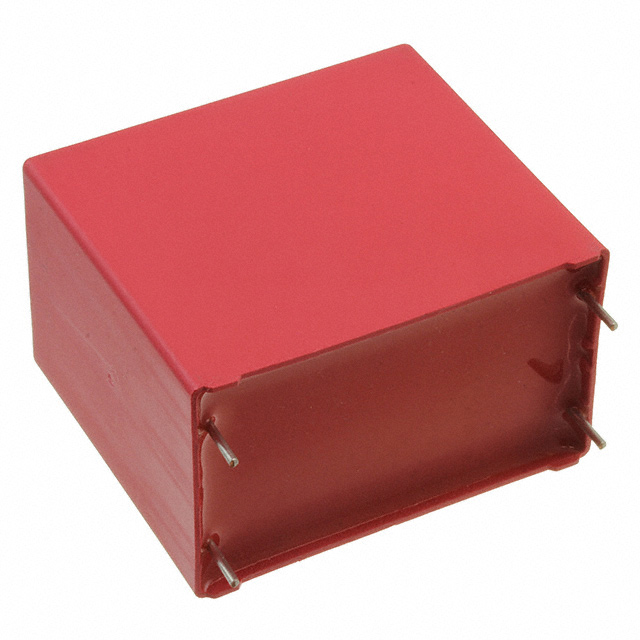

CAP FILM 1UF 10% 2KVDC RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MKS4U041009FD4KSSD

Active

WIMA

CAP FILM 1UF 10% 2KVDC RADIAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.03
		25	$ 10.83
		50	$ 10.59

Description

General part information

MKS4U0 Series

1 µF Film Capacitor 400V 2000V (2kV) Polyester, Polyethylene Terephthalate (PET), Metallized Radial - 4 Leads

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MKS4U041009FD4KSSD	MKS4U0 Series

Applications	Automotive, DC Link, DC Filtering	Automotive, DC Link, DC Filtering, General Purpose
Capacitance	1 µF	0.001 - 100000 pF
Dielectric Material	Polyethylene Terephthalate (PET), Metallized, Polyester	Polyethylene Terephthalate (PET), Metallized, Polyester
Height - Seated (Max)	-	11 - 65 mm
Height - Seated (Max)	-	0.433 - 16.51 "
Height - Seated (Max)	-	9 - 19 mm
Height - Seated (Max)	-	0.354 - 0.748 in
Lead Spacing	52.5 mm	10 - 52.5 mm
Lead Spacing	2.067 in	0.394 - 2.067 in
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	Radial - 4 Leads	Radial, Radial - 4 Leads
Ratings	AEC-Q200	AEC-Q200
Size / Dimension	-	57 mm
Size / Dimension	-	30 mm
Size / Dimension [x]	2.244 in	0.512 - 2.244 in
Size / Dimension [x]	57 mm	2.244 - 57 mm
Size / Dimension [y]	1.378 "	0.157 - 1.772 in
Size / Dimension [y]	35 mm	1.181 - 45 mm
Termination	PC Pins	PC Pins
Tolerance	10 %	5 - 20 %
Voltage Rating - AC	400 V	400 V
Voltage Rating - DC	2 kV	2 kV
Voltage Rating - DC	2 kVDC	2 kVDC

MKS4U0 Series

CAP FILM 3300PF 20% 2KVDC RADIAL

...

Part	Voltage Rating - AC	Package / Case	Tolerance	Applications	Termination	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Ratings	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Capacitance	Dielectric Material	Voltage Rating - DC	Voltage Rating - DC	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
WIMA MKS4U013303G00MI00	400 V	Radial	20 %	Automotive, DC Filtering, DC Link	PC Pins	Through Hole	-55 °C	125 °C	AEC-Q200	0.394 in	10 mm	12 mm	0.472 "	3300 pF	Metallized, Polyester, Polyethylene Terephthalate (PET)	2 kV	2 kVDC
WIMA MKS4U024705I00MJ00	400 V	Radial	20 %	Automotive, DC Filtering, DC Link	PC Pins	Through Hole	-55 °C	125 °C	AEC-Q200	0.886 in	22.5 mm	21 mm	0.827 "		Metallized, Polyester, Polyethylene Terephthalate (PET)	2 kV	2 kVDC	26.5 mm	0.433 in	11 mm	1.043 in
WIMA MKS4U014704B00MJ00	400 V	Radial	20 %	Automotive, DC Filtering, DC Link	PC Pins	Through Hole	-55 °C	125 °C	AEC-Q200	0.591 in	15 mm	11 mm	0.433 in	4700 pF	Metallized, Polyester, Polyethylene Terephthalate (PET)	2 kV	2 kVDC	18 mm	0.197 "	5 mm	0.709 in
WIMA MKS4U014704B00KF00	400 V	Radial	10 %	Automotive, DC Filtering, DC Link	PC Pins	Through Hole	-55 °C	125 °C	AEC-Q200	0.591 in	15 mm	11 mm	0.433 in	4700 pF	Metallized, Polyester, Polyethylene Terephthalate (PET)	2 kV	2 kVDC	18 mm	0.197 "	5 mm	0.709 in
WIMA MKS4U012203F00JD00	400 V	Radial	5 %	Automotive, DC Filtering, DC Link	PC Pins	Through Hole	-55 °C	125 °C	AEC-Q200	0.394 in	10 mm	11 mm	0.433 in	2200 pF	Metallized, Polyester, Polyethylene Terephthalate (PET)	2 kV	2 kVDC	13 mm	0.197 "	5 mm	0.512 in
WIMA MKS4U031507C00MSSD	400 V	Radial	20 %	Automotive, DC Filtering, DC Link	PC Pins	Through Hole	-55 °C	125 °C	AEC-Q200	1.476 in	37.5 mm	24 mm	0.945 in	0.15 ÁF	Metallized, Polyester, Polyethylene Terephthalate (PET)	2 kV	2 kVDC	41.5 mm	0.512 in	13 mm	1.634 "
WIMA MKS4U013304B00MI00	400 V	Radial	20 %	Automotive, DC Filtering, DC Link	PC Pins	Through Hole	-55 °C	125 °C	AEC-Q200	0.591 in	15 mm	11 mm	0.433 in	3300 pF	Metallized, Polyester, Polyethylene Terephthalate (PET)	2 kV	2 kVDC	18 mm	0.197 "	5 mm	0.709 in
WIMA MKS4U024706B00JSSD	400 V	Radial	5 %	Automotive, DC Filtering, DC Link	PC Pins	Through Hole	-55 °C	125 °C	AEC-Q200	1.083 in	27.5 mm	21 mm	0.827 "		Metallized, Polyester, Polyethylene Terephthalate (PET)	2 kV	2 kVDC
WIMA MKS4U013304B00JB00	400 V	Radial	5 %	Automotive, DC Filtering, DC Link	PC Pins	Through Hole	-55 °C	125 °C	AEC-Q200	0.591 in	15 mm	11 mm	0.433 in	3300 pF	Metallized, Polyester, Polyethylene Terephthalate (PET)	2 kV	2 kVDC	18 mm	0.197 "	5 mm	0.709 in
WIMA MKS4U023305G00JH00	400 V	Radial	5 %	Automotive, DC Filtering, DC Link	PC Pins	Through Hole	-55 °C	125 °C	AEC-Q200	0.886 in	22.5 mm			0.033 çF	Metallized, Polyester, Polyethylene Terephthalate (PET)	2 kV	2 kVDC	26.5 mm	0.413 in	10.5 mm	1.043 in	19 mm	0.748 in
